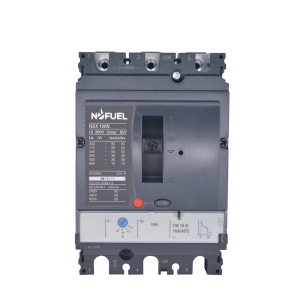

Compact NSX630N MCCB

Short Description:

Experience the superior quality of the Nofuel Series Compact NSX Molded Case Circuit Breaker. The Series circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 630A.

FOB Price: US $5 - 499 / Piece

Supply Ability: 5000 Pcs per Month

Payment Terms: L/C, D/P, T/T, Paypal

Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V

Brand : Nofuel

Send email to us Download as PDF

Product Detail

Product Tags

Typpe			NSX100	NSX250		NSX400	NSX630
Rated current In(A)			16…100A	12…250A		250…400A	400…630A
Number of poles			3	1	3	3	3
Rated voltage Ue(V)			AC-380V-69V DC250
Rated insulation Voltage Ui(V)			AC690V
Short-circuit Interrupting capacity Icu/Ics	AC	690V	-	14/7		35/18	35/18
		500V	-	14/7		35/18	35/18
		440V	20/10	50/25		100/75	100/75
		415V	25/13	70/70		100/75	100/75
		380V	25/13	70/70		100/75	100/75
		230V	65//33	100/100		200/150	200/150
	DC	250V	10/5	20/10		20/10	20/10
Dimensions(mm)		a	77	35	105	140	210
		b	124	153		258	275
		c	67	86		104	111
		ca	77	108		138	168
Weight(kg)			1	0.7	2.4	6.1	9.4
Electrical-operation device			●	●		●	●
Automatic tripping device			Thermal-magnetic	Thermal-magnetic		Thermal-magnetic	Thermal-magnetic
