EH Series Contactors

Short Description:

70 to 600HP

IEC 60947 CE and RoHS compliant

Can be mounted in a vertical or horizontal position

2 year warranty

Optional Accessories Include:

Auxiliary contact blocks

Replacement coils easily changed

Mechanical interlocking devices

FOB Price: US $5 - 499 / Piece

Supply Ability: 5000 Pcs per Month

Payment Terms: L/C, D/P, T/T, Paypal

Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V

Brand : Nofuel

Send email to us Download as PDF

Product Detail

Product Tags

Features:

1.70 to 600HP

2.IEC 60947 CE and RoHS compliant

3.Can be mounted in a vertical or horizontal position

4.2 year warranty

Optional Accessories Include:

1.Auxiliary contact blocks

2.Replacement coils easily changed

3.Mechanical interlocking devices

Model	200-208V	220-240V	440-480V	550-600V	NEMA/ EEMAC	General Purpose Current
EH 80 EH 90 EH 110 EH 145 EH 175 EH 210 EH 260 EH 300 EH 450 EH 550 EH 700 EH 800	25 30 30 40 50 60 75 100 125 150 200 250	30 30 40 50 60 75 100 100 150 200 250 300	60 60 75 100 125 150 200 250 350 400 500 600	75 75 100 125 150 200 250 250 400 500 600 700	4567	110 125 140 170 190 230 300 350 525 600 715 900

Nofuel Part #	Coil Voltage	HP Ratings @230V	HP Ratings @460V	AmpRatings @AC3
EH-80	120	30	70	80
EH-80-30-11	120	30	70	80
EH-80-30-11AA	24	30	70	80
EH-80-30-11AK	240	30	70	80
EH-80-30-11AS	480	30	70	80
EH-90	120	30	70	96
EH-90-30-11	120	30	70	96
EH-90-30-11AA	24	30	70	96
EH-90-30-11AK	240	30	70	96
EH-90-30-11AS	480	30	70	96
EH-100	120	40	75	120
EH-100-30-11	120	40	75	120
EH-100-30-11AA	24	40	75	120
EH-100-30-11AK	240	40	75	120
EH-100-30-11AS	480	40	75	120
EH-110	120	40	75	120
EH-110-30-11	120	40	75	120
EH-110-30-11AA	24	40	75	120
EH-110-30-11AK	240	40	75	120
EH-110-30-11AS	480	40	75	120
EH-145	120	50	100	145
EH-145-30-11	120	50	100	145
EH-145-30-11AA	24	50	100	145
EH-145-30-11AK	240	50	100	145
EH-145-30-11AS	480	50	100	145
EH-175	120	60	125	185
EH-175-30-11	120	60	125	185
EH-175-30-11AA	24	60	125	185
EH-175-30-11AK	240	60	125	185
EH-175-30-11AS	480	60	125	185
EH-210	120	75	150	210
EH-210-30-11	120	75	150	210
EH-210-30-11AA	24	75	150	210
EH-210-30-11AK	240	75	150	210
EH-210-30-11AS	480	75	150	210
EH-260	120	100	200	260
EH-260-30-11	120	100	200	260
EH-260-30-11AA	24	100	200	260
EH-260-30-11AK	240	100	200	260
EH-260-30-11AS	480	100	200	260
EH-300	120	100	250	305
EH-300-30-11	120	100	250	305
EH-300-30-11AK	240	100	250	305
EH-300-30-11AS	480	100	250	305
EH-370	120	150	300	400
EH-370-30-11	120	150	300	400
EH-370-30-11AK	240	150	300	400
EH-370-30-11AS	480	150	300	400
EH-550	120	200	400	550
EH-550-30-11	120	200	400	550
EH-550-30-11AK	240	200	400	550
EH-550-30-11AS	480	200	400	550
EH-700	120	250	550	700
EH-700-30-11	120	250	550	700
EH-700-30-11AK	240	250	550	700
EH-700-30-11AS	480	250	550	700
EH-800	120	300	600	750
EH-800-30-11	120	300	600	750
EH-800-30-11AK	240	300	600	750
EH-800-30-11AS	480	300	600	750

EH-80	EH80, direct replacement/aftermarket contactors for ABB EH80, 3-pole, 3-phase, 80A, 600V, 35HP @ 240V, 70HP @ 480V, 70HP @ 600V, 120VAC coil installed, 2NO/2NC aux contacts, AC contactor
EH-90	EH90, direct replacement/aftermarket contactors for ABB EH90, 3-pole, 3-phase, 96A, 600V, 35HP @ 240V, 70HP @ 480V, 70HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-100	EH100, direct replacement/aftermarket contactors for ABB EH100, 3-pole, 3-phase, 120A, 600V, 40HP @ 240V, 75HP @ 480V, 100HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-110	EH110, direct replacement/aftermarket contactors for ABB EH110, 3-pole, 3-phase, 120A, 600V, 40HP @ 240V, 75HP @ 480V, 100HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-145	EH145, direct replacement/aftermarket contactors for ABB EH145, 3-pole, 3-phase, 145A, 600V, 50HP @ 240V, 100HP @ 480V, 125HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-175	EH175, direct replacement/aftermarket contactors for ABB EH175, 3-pole, 3-phase, 185A, 600V, 70HP @ 240V, 125HP @ 480V, 165HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-210	EH210, direct replacement/aftermarket contactors for ABB EH210, 3-pole, 3-phase, 210A, 600V, 75HP @ 240V, 150HP @ 480V, 200HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-260	EH260, direct replacement/aftermarket contactors for ABB EH260, 3-pole, 3-phase, 260A, 600V, 100HP @ 240V, 200HP @ 480V, 250HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-300	EH300, direct replacement/aftermarket contactors for ABB EH300, 3-pole, 3-phase, 305A, 600V, 100HP @ 240V, 250HP @ 480V, 250HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor

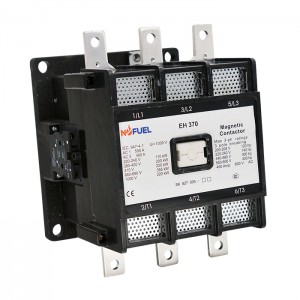

EH-370	EH370, direct replacement/aftermarket contactors for ABB EH370, 3-pole, 3-phase, 400A, 600V, 140HP @ 240V, 300HP @ 480V, 400HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-550	EH550, direct replacement/aftermarket contactors for ABB EH550, 3-pole, 3-phase, 550A, 600V, 200HP @ 240V, 400HP @ 480V, 500HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-700	EH700, direct replacement/aftermarket contactors for ABB EH700, 3-pole, 3-phase, 700A, 600V, 300HP @ 240V, 550HP @ 480V, 650HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
EH-800	EH800, direct replacement/aftermarket contactors for ABB EH800, 3-pole, 3-phase, 750A, 600V, 300HP @ 240V, 600HP @ 480V, 700HP @ 600V, 120VAC coil installed, 2NO/2NC aux contact, AC contactor
