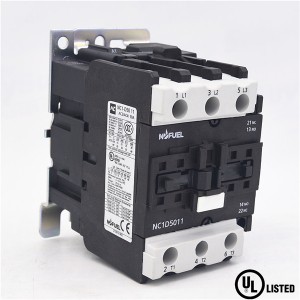

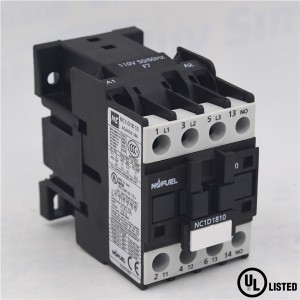

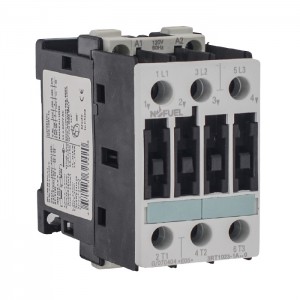

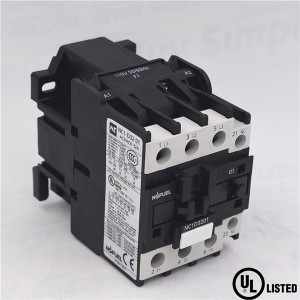

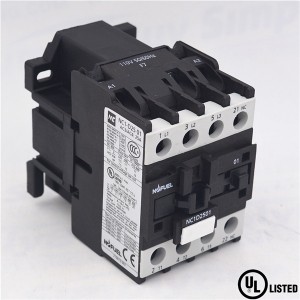

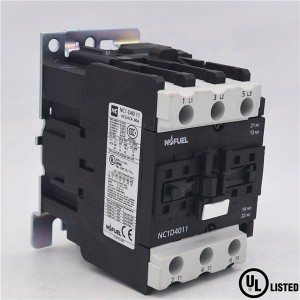

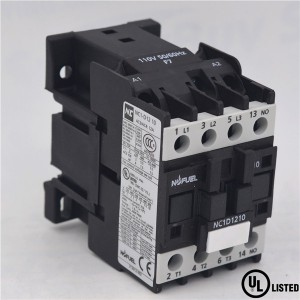

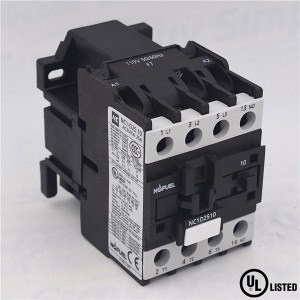

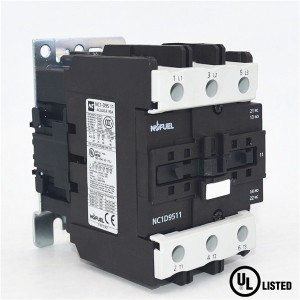

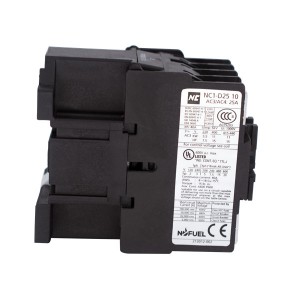

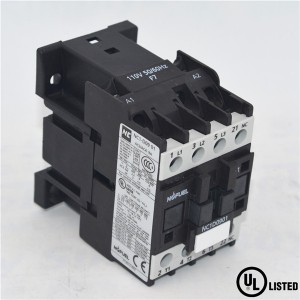

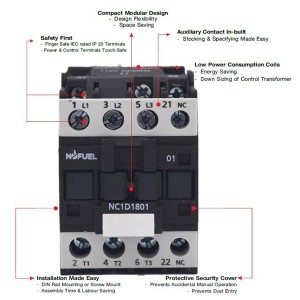

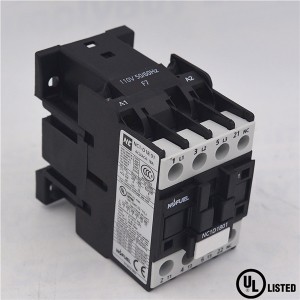

Nofuel NC1D Series Magnetic Contactors have been engineered for superior performance under Hazardous tropical conditions, conforming to IS/IEC 60947-4-1; IS/IEC 60947-1. It’s robust construction with heavy duty silver alloy contacts, encapsulated coil in higher range to withstand wide voltage fluctuations delivers long life. Contactor have high insulation strength, with high making and breaking capacity. The Contactor Base with Télémécanique motor control technology since 1924
Advantage
- Extremely easy maintenance
- Easy coil replacement
- Low down time for Contactor maintenance
- Contactor is ideally suitable for standalone applications such as welding, compressor, motor control & machine tools etc
Certificate : UL CSA RU CCC CE RoHS
- 9A ~ 95A (AC3 rating)
- 3 & 4 Pole Contactor
- 4 Frame sizes
- 115A ~ 800A (AC3 rating)
- 3 & 4 Pole Contactor
- 8 Frame sizes
Industrial Applications
- Motor Controls
- Pumps
- Machine Tools
- Printing & Packaging Machines
- Compressors
- Power Supply Solutions
- HVAC
- Cranes
- Elevators & Escalators
- Windmills
- Solar Systems
Nofuel Contactor Series– 3 Pole
Conforming: IS 13947-4-1 / IEC 60947-4-1
Technical Parameters-Contactor: 9A~95A
|
AC Types3 Pole DC |

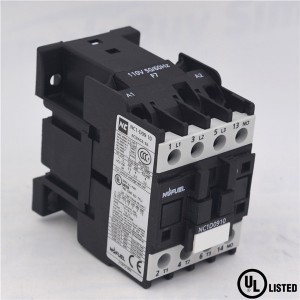

NC1D-09 |

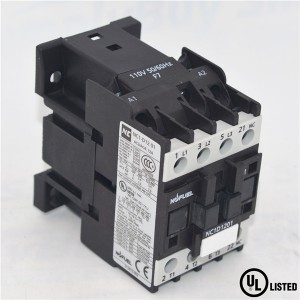

NC1D-12 |
NC1D-18 |
NC1D-25 |
|
NP1D-09 |
NP1D-12 |
NP1D-18 |
NP1D-25 |
|
|
Maximum Rated Current for AC3 Duty |
9A |
12A |
18A |
25A |
|
Rated Operational Voltage: Ue |
690 |
|||
|
Thermal Current: Ith |
25A |
32A |
40A |
|
|
Power Rating for Motor Control for AC3 Duty Ø <=55°C,415V
Conforming to UL, CSA230V 460/480V 575/600V |
KW / HP 4 / 5.5 |
KW / HP 5.5 / 7.5 |
KW / HP 9 / 12.5 |
KW / HP 11 / 15 |
|
2 |
3 |
5 |
7.5 |
|
|
5 |
7.5 |
10 |
15 |
|
|
7.5 |
10 |
15 |
20 |
|
|
Mounting Position |
±30 |
|||
|
Ambient Air Temperature (Operational) |
- 5 to + 55°C |
|||
|
Maximum Operating Rate Operations / Hrs.AC / DC |
3600 |
|||
|
Mechanical Life50-60 Hz |
20 |
|||
|
Thermal / Electronic Overload Relay |
0.10~13.0 |
13.0~37.0 |
||
|
Auxiliary Contact BlockFront Mounted: Side Mounted: |
1 NO, 1NC, 2NO, 1 NO+1NC, 2NC, 4NO, 3NO+1NC, 2NO+2NC, 1NO+3NC, 4NC |
|||
|
1NO+1NC, 2NC |
||||
|
Pneumatic TimerFront Mounted: Star Delta Timer: |
On Delay 1NO+1NC (0.1~180 Sec) OFF Delay 1NO+1NC (0.1~180 Sec) |
|||
|
1 NO+1NC (0.1~30 Sec) |
||||
|
Mechanical InterlockHorizontally Mounted: |
AC: NC1D09 - NC1D95DC: NP1D09 - NP1D95 |
|||
|
Surge Suppressor |
Varistor AC/DC:24~48V,110~240V RC Circuit AC:24~48V,110~240V, 380~440V |
|||
AC Coil Voltage for
3 Pole Contactors 9A~95A & Control Relays
| Coils Code |
Voltage |
| TX1-D |
24 48 110 220 240 380 415 |
| 50/60 Hz |
B7 E7 F7 M7 U7 Q7 N7 |
|
NC1D-32 |
NC1D-40 |
NC1D-50 |

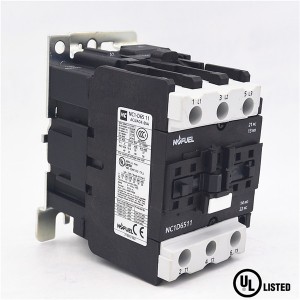

NC1D-65 |
NC1D-80 |
NC1D-95 |
|
BLP1D-32 |
NP1D-40 |
NP1D-50 |
NP1D-65 |
NP1D-80 |
NP1D-95 |
|
32A |
40A |
50A |
65A |
80A |
95A |
690
| 50A | 60A |
80A |
125A |
||
| KW / HP15 / 20 |
KW / HP 22 / 30 |
KW / HP 25 / 35 |
KW / HP 37 / 50 |
KW / HP 45 / 60 |
KW / HP 45 / 60 |
| 10 | 10 |
15 |
20 |
25 |
25 |
| 20 | 30 |
40 |
50 |
60 |
60 |
| 25 | 30 |
40 |
50 |
60 |
60 |
±30
- 5 to + 55°C 3600
50-60 Hz
| 13.0~37.0 |
40.0~63.0 |
63.0~93.0 |
DC Coil Voltage for
3 Pole Contactors 9A~95A & Control Relays
| Coils Code |
Voltage |
| TX4-D | 12 24 48 72 110 125 220 250 440 |
| Nominal Coil | JD BD ED SD FD GD MD UD RD |
Outline and Mounting Dimensions in mm
NC1D50 – NC1D65
NC1D1801
NC1D80 – BLC1D95
