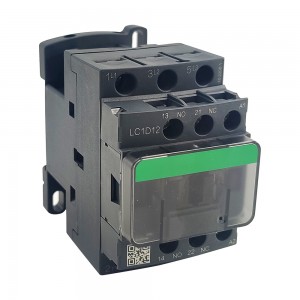

LC1D Contactors

Short Description:

TeSys D offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry。Designed to control and provide overload protection to motors rated up to 600 HP at 480 VAC , TeSys D meets your needs for a majority of motor starter applications with largest selling line

FOB Price: US $5 - 499 / Piece

Supply Ability: 5000 Pcs per Month

Payment Terms: L/C, D/P, T/T, Paypal

Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V

Brand : Nofuel

Send email to us Download as PDF

Product Detail

Product Tags

Features:

1.5 to 600HP

2，IEC 60947 CE and RoHS compliant

3.Class 10 or Class 20 bimetallic overload relays

4.Direct mount to Manual Motor Starter GV2

5.Easy combinatie to LE1D DOL Motor Starter

6.3-pole and 4-pole contactor versions available

7.can be panel mounted with screws or DIN rail mounted

8.Available with AC or DC operating coils from 24V to 600V

9.2 year warranty

Optional Accessories Include:

• built-in auxiliary contacts

• Reverse mounting kits and interlocks

• Time delay units

• Surge suppressors

• Direct mount to Manual Motor Starter GV2

Nofuel Part #	Nofuel Part #	Coil Voltage	HP Ratings @230V	HP Ratings @460V	Amp Ratings @AC3
LC1D09	LC1D09	110/120	2	5	9
LC1D0910	LC1D0910	110/120	2	5	9
LC1D0910-B6	LC1D0910B6	24	2	5	9
LC1D0910-B7	LC1D0910B7	24	2	5	9
LC1D0910-E7	LC1D0910E7	48	2	5	9
LC1D0910-G6	LC1D0910G6	110/120	2	5	9
LC1D0910-G7	LC1D0910G7	110/120	2	5	9
LC1D0910-M7	LC1D0910M7	220	2	5	9
LC1D0910-Q6	LC1D0910Q6	380	2	5	9
LC1D0910-T6	LC1D0910T6	480	2	5	9
LC1D0910-U6	LC1D0910U6	240	2	5	9
LC1D0910-U7	LC1D0910U7	240	2	5	9
LC1D0910-V7	LC1D0910V7	400	2	5	9
LC1D12	LC1D12	110/120	3	7.5	12
LC1D1201	LC1D1201	110/120	3	7.5	12
LC1D1210	LC1D1210	110/120	3	7.5	12
LC1D1210-B6	LC1D1210B6	24	3	7.5	12
LC1D1210-B7	LC1D1210B7	24	3	7.5	12
LC1D1210-E7	LC1D1210E7	48	3	7.5	12
LC1D1210-G6	LC1D1210G6	110/120	3	7.5	12
LC1D1210-G7	LC1D1210G7	110/120	3	7.5	12
LC1D1210-M7	LC1D1210M7	220	3	7.5	12
LC1D1210-Q6	LC1D1210Q6	380	3	7.5	12
LC1D1210-R7	LC1D1210R7	440	3	7.5	12
LC1D1210-T6	LC1D1210T6	480	3	7.5	12
LC1D1210-U6	LC1D1210U6	240	3	7.5	12
LC1D1210-U7	LC1D1210U7	240	3	7.5	12
LC1D1210-V7	LC1D1210V7	400	3	7.5	12
LC1D18	LC1D18	110/120	5	10	18
LC1D1810	LC1D1810	110/120	5	10	18
LC1D1810-B6	LC1D1810B6	24	5	10	18
LC1D1810-B7	LC1D1810B7	24	5	10	18
LC1D1810-E7	LC1D1810E7	48	5	10	18
LC1D1810-G6	LC1D1810G6	110/120	5	10	18
LC1D1810-G7	LC1D1810G7	110/120	5	10	18
LC1D1810-M7	LC1D1810M7	220	5	10	18
LC1D1810-Q6	LC1D1810Q6	380	5	10	18
LC1D1810-R7	LC1D1810R7	440	5	10	18
LC1D1810-T6	LC1D1810T6	480	5	10	18
LC1D1810-U6	LC1D1810U6	240	5	10	18
LC1D1810-U7	LC1D1810U7	240	5	10	18
LC1D1810-V7	LC1D1810V7	400	5	10	18
LC1D25	LC1D25	110/120	7.5	15	25
LC1D2510	LC1D2510	110/120	7.5	15	25
LC1D2510-B6	LC1D2510B6	24	7.5	15	25
LC1D2510-B7	LC1D2510B7	24	7.5	15	25
LC1D2510-E7	LC1D2510E7	48	7.5	15	25
LC1D2510-G6	LC1D2510G6	110/120	7.5	15	25
LC1D2510-G7	LC1D2510G7	110/120	7.5	15	25
LC1D2510-M7	LC1D2510M7	220	7.5	15	25
LC1D2510-P7	LC1D2510P7	230	7.5	15	25
LC1D2510-Q6	LC1D2510Q6	380	7.5	15	25
LC1D2510-Q7	LC1D2510Q7	380	7.5	15	25
LC1D2510-R7	LC1D2510R7	440	7.5	15	25
LC1D2510-T6	LC1D2510T6	480	7.5	15	25
LC1D2510-U6	LC1D2510U6	240	7.5	15	25
LC1D2510-U7	LC1D2510U7	240	7.5	15	25
LC1D2510-V7	LC1D2510V7	400	7.5	15	25
LC1D32	LC1D32	110/120	10	20	32
LC1D3210	LC1D3210	110/120	10	20	32
LC1D3210-B6	LC1D3210B6	24	10	20	32
LC1D3210-B7	LC1D3210B7	24	10	20	32
LC1D3210-E7	LC1D3210E7	48	10	20	32
LC1D3210-G6	LC1D3210G6	110/120	10	20	32
LC1D3210-G7	LC1D3210G7	110/120	10	20	32
LC1D3210-M7	LC1D3210M7	220	10	20	32
LC1D3210-P7	LC1D3210P7	230	10	20	32
LC1D3210-Q6	LC1D3210Q6	380	10	20	32
LC1D3210-Q7	LC1D3210Q7	380	10	20	32
LC1D3210-R7	LC1D3210R7	440	10	20	32
LC1D3210-T6	LC1D3210T6	480	10	20	32
LC1D3210-U6	LC1D3210U6	240	10	20	32
LC1D3210-U7	LC1D3210U7	240	10	20	32
LC1D3210-V7	LC1D3210V7	400	10	20	32
LC1D40	LC1D40	110/120	10	30	40
LC1D4011	LC1D4011	110/120	10	30	40
LC1D4011-B6	LC1D4011B6	24	10	30	40
LC1D4011-B7	LC1D4011B7	24	10	30	40
LC1D4011-E7	LC1D4011E7	48	10	30	40
LC1D4011-G6	LC1D4011G6	110/120	10	30	40
LC1D4011-G7	LC1D4011G7	110/120	10	30	40
LC1D4011-M7	LC1D4011M7	220	10	30	40
LC1D4011-P7	LC1D4011P7	230	10	30	40
LC1D4011-Q6	LC1D4011Q6	380	10	30	40
LC1D4011-Q7	LC1D4011Q7	380	10	30	40
LC1D4011-R7	LC1D4011R7	440	10	30	40
LC1D4011-T6	LC1D4011T6	480	10	30	40
LC1D4011-U6	LC1D4011U6	240	10	30	40
LC1D4011-U7	LC1D4011U7	240	10	30	40
LC1D4011-V7	LC1D4011V7	400	10	30	40
LC1D50	LC1D50	110/120	15	40	50
LC1D5011	LC1D5011	110/120	15	40	50
LC1D5011-B6	LC1D5011B6	24	15	40	50
LC1D5011-B7	LC1D5011B7	24	15	40	50
LC1D5011-E7	LC1D5011E7	48	15	40	50
LC1D5011-G6	LC1D5011G6	110/120	15	40	50
LC1D5011-G7	LC1D5011G7	110/120	15	40	50
LC1D5011-M7	LC1D5011M7	220	15	40	50
LC1D5011-P7	LC1D5011P7	230	15	40	50
LC1D5011-Q6	LC1D5011Q6	380	15	40	50
LC1D5011-Q7	LC1D5011Q7	380	15	40	50
LC1D5011-R7	LC1D5011R7	440	15	40	50
LC1D5011-T6	LC1D5011T6	480	15	40	50
LC1D5011-U6	LC1D5011U6	240	15	40	50
LC1D5011-U7	LC1D5011U7	240	15	40	50
LC1D5011-V7	LC1D5011V7	400	15	40	50
LC1D65	LC1D65	110/120	20	40	65
LC1D6511	LC1D6511	110/120	20	40	65
LC1D6511-B6	LC1D6511B6	24	20	40	65
LC1D6511-B7	LC1D6511B7	24	20	40	65
LC1D6511-E7	LC1D6511E7	48	20	40	65
LC1D6511-G6	LC1D6511G6	110/120	20	40	65
LC1D6511-G7	LC1D6511G7	110/120	20	40	65
LC1D6511-M7	LC1D6511M7	220	20	40	65
LC1D6511-P7	LC1D6511P7	230	20	40	65
LC1D6511-Q6	LC1D6511Q6	380	20	40	65
LC1D6511-Q7	LC1D6511Q7	380	20	40	65
LC1D6511-R7	LC1D6511R7	440	20	40	65
LC1D6511-T6	LC1D6511T6	480	20	40	65
LC1D6511-U6	LC1D6511U6	240	20	40	65
LC1D6511-U7	LC1D6511U7	240	20	40	65
LC1D6511-V7	LC1D6511V7	400	20	40	65
LC1D80	LC1D80	110/120	30	60	80
LC1D8011	LC1D8011	110/120	30	60	80
LC1D8011-B6	LC1D8011B6	24	30	60	80
LC1D8011-B7	LC1D8011B7	24	30	60	80
LC1D8011-E7	LC1D8011E7	48	30	60	80
LC1D8011-G6	LC1D8011G6	110/120	30	60	80
LC1D8011-G7	LC1D8011G7	110/120	30	60	80
LC1D8011-M7	LC1D8011M7	220	30	60	80
LC1D8011-P7	LC1D8011P7	230	30	60	80
LC1D8011-Q6	LC1D8011Q6	380	30	60	80
LC1D8011-Q7	LC1D8011Q7	380	30	60	80
LC1D8011-R7	LC1D8011R7	440	30	60	80
LC1D8011-T6	LC1D8011T6	480	30	60	80
LC1D8011-U6	LC1D8011U6	240	30	60	80
LC1D8011-U7	LC1D8011U7	240	30	60	80
LC1D8011-V7	LC1D8011V7	400	30	60	80
LC1D95	LC1D95	110/120	30	60	95
LC1D9511	LC1D9511	110/120	30	60	95
LC1D9511-B6	LC1D9511B6	24	30	60	95
LC1D9511-B7	LC1D9511B7	24	30	60	95
LC1D9511-E7	LC1D9511E7	48	30	60	95
LC1D9511-G6	LC1D9511G6	110/120	30	60	95
LC1D9511-G7	LC1D9511G7	110/120	30	60	95
LC1D9511-M7	LC1D9511M7	220	30	60	95
LC1D9511-P7	LC1D9511P7	230	30	60	95
LC1D9511-Q6	LC1D9511Q6	380	30	60	95
LC1D9511-Q7	LC1D9511Q7	380	30	60	95
LC1D9511-R7	LC1D9511R7	440	30	60	95
LC1D9511-T6	LC1D9511T6	480	30	60	95
LC1D9511-U6	LC1D9511U6	240	30	60	95
LC1D9511-U7	LC1D9511U7	240	30	60	95
LC1D9511-V7	LC1D9511V7	400	30	60	95
LC1D115	LC1D115	110/120	40	75	115
LC1D115B6	LC1D115B6	24	40	75	115
LC1D115G6	LC1D115G6	110/120	40	75	115
LC1D115T6	LC1D115T6	480	40	75	115
LC1D115U6	LC1D115U6	240	40	75	115
LC1D150	LC1D150	110/120	40	100	150
LC1D150B6	LC1D150B6	24	40	100	150
LC1D150G6	LC1D150G6	120	40	100	150
LC1D150T6	LC1D150T6	480	40	100	150
LC1D150U6	LC1D150U6	240	40	100	150
