CHARACTERISTICE:
A.Fundamental parameter of the main circuit
(a).Rated insulation voltage 660V.
(b).Rated working current 25,36,93A separately.
(c).The regualtor seal of rated setting current and setting.
(d).Current of the thermal component.
B.Auxiliary Circuit
(a).There is one pair of NO/ and N/C contact with electric insulation.
(b).Rated insulation voltage 500V.
(c).Rated frequency 50-60HZ.
(d).Use group,rated working voltage,appoint thermal current and rated current.<
| Type | Rated working current of thermal relay | Thermal component | For contactor | ||
| Rated current(A) | Setting rated current (A) | ||||

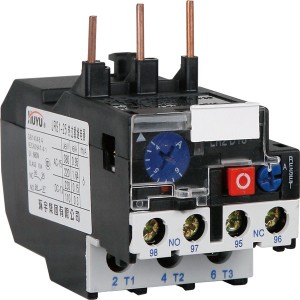

| LR2-D13 | 25 | LR2-D1301 | 0.16 | 0.10-0.16 | LC1D09 LC1D12 LC1D18 LC1D25 LC1D32 |
| LR2-D1302 | 0.25 | 0.16-0.25 | |||
| LR2-D1303 | 0.4 | 0.25-0.40 | |||
| LR2-D1304 | 0.63 | 0.40-0.63 | |||
| LR2-D1305 | 1 | 0.63-1.0 | |||
| LR2-D1306 | 1.6 | 1.0-1.6 | |||
| LR2-D13x6 | 2 | 1.25-2.0 | |||
| LR2-D1307 | 2.5 | 1.6-2.5 | |||
| LR2-D1308 | 4 | 2.5-4.0 | |||
| LR2-D1310 | 6 | 4.0-6.0 | |||
| LR2-D1312 | 8 | 5.5-8.0 | |||
| LR2-D1314 | 10 | 7.0-10.0 | |||
| LR2-D1316 | 13 | 9.0-13.0 | |||
| LR2-D1321 | 18 | 12.0-18.0 | |||
| LR2-D1322 | 25 | 17.0-25.0 | |||

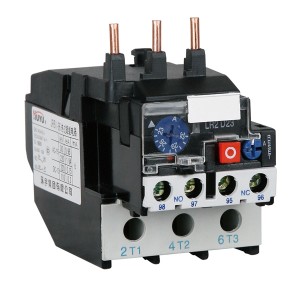

| LR2-D23 | 36 | LR2-D2353 | 32 | 23.0-32.0 | LC1D25 LC1D32 |
| LR2-D2355 | 36 | 28.0-36.0 | |||

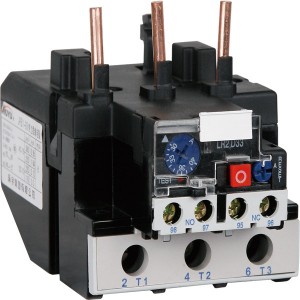

| LR2-D33 | 93 | LR2-D3353 | 32 | 23.0-32.0 | LC1D40 LC1D50 LC1D65 |
| LR2-D3355 | 40 | 30.0-40.0 | |||
| LR2-D3357 | 50 | 37.0-50.0 | |||
| LR2-D3359 | 65 | 48.0-65.0 | |||
| LR2-D3361 | 70 | 55.0-70.0 | LC1D65 | ||
| LR2-D3363 | 90 | 63.0-80.0 | LC1D80 | ||
| LR2-D3365 | 93 | 80.0-93.0 | LC1D90 | ||
