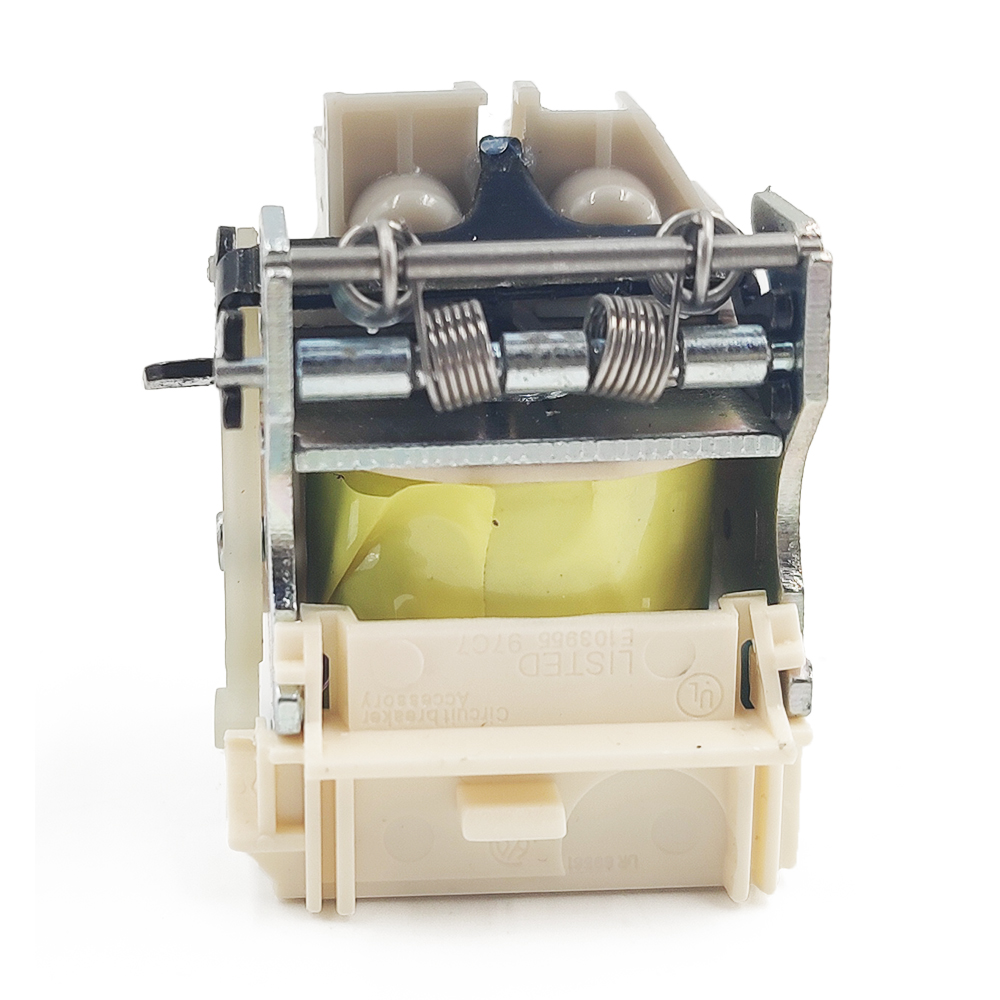

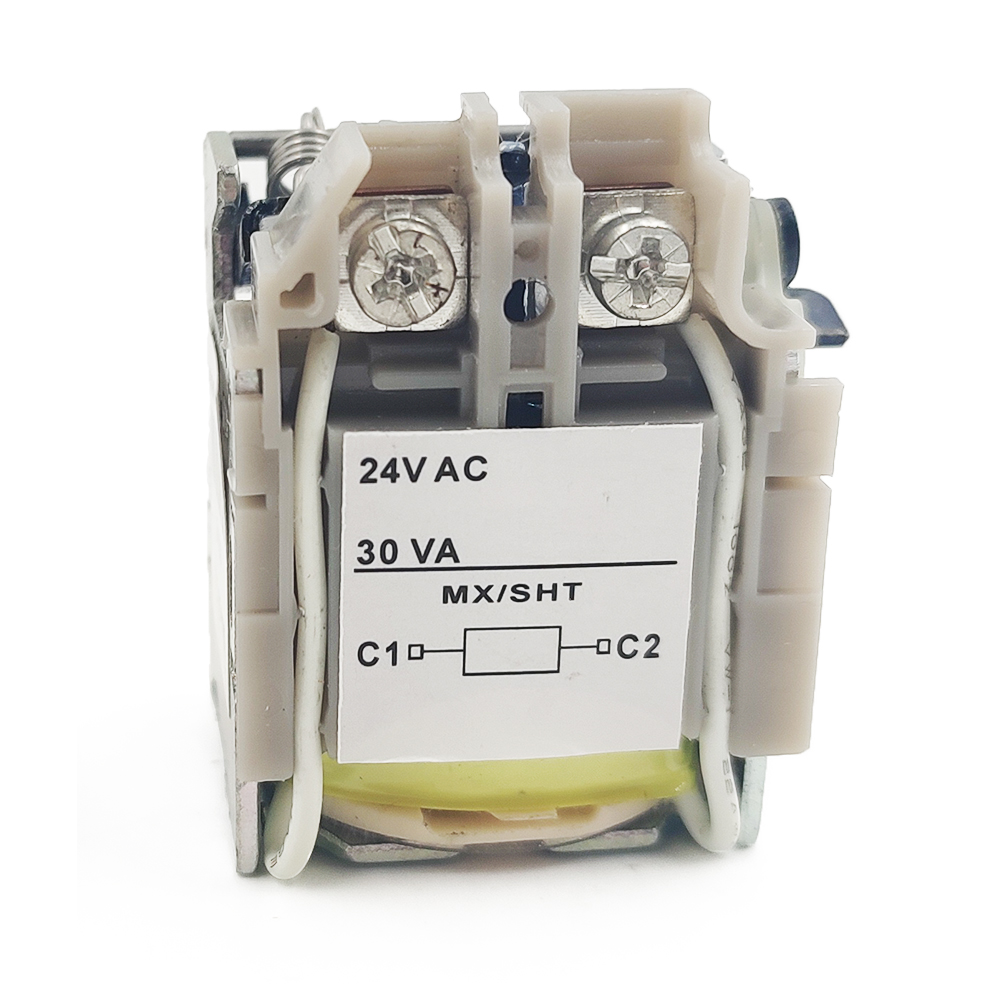

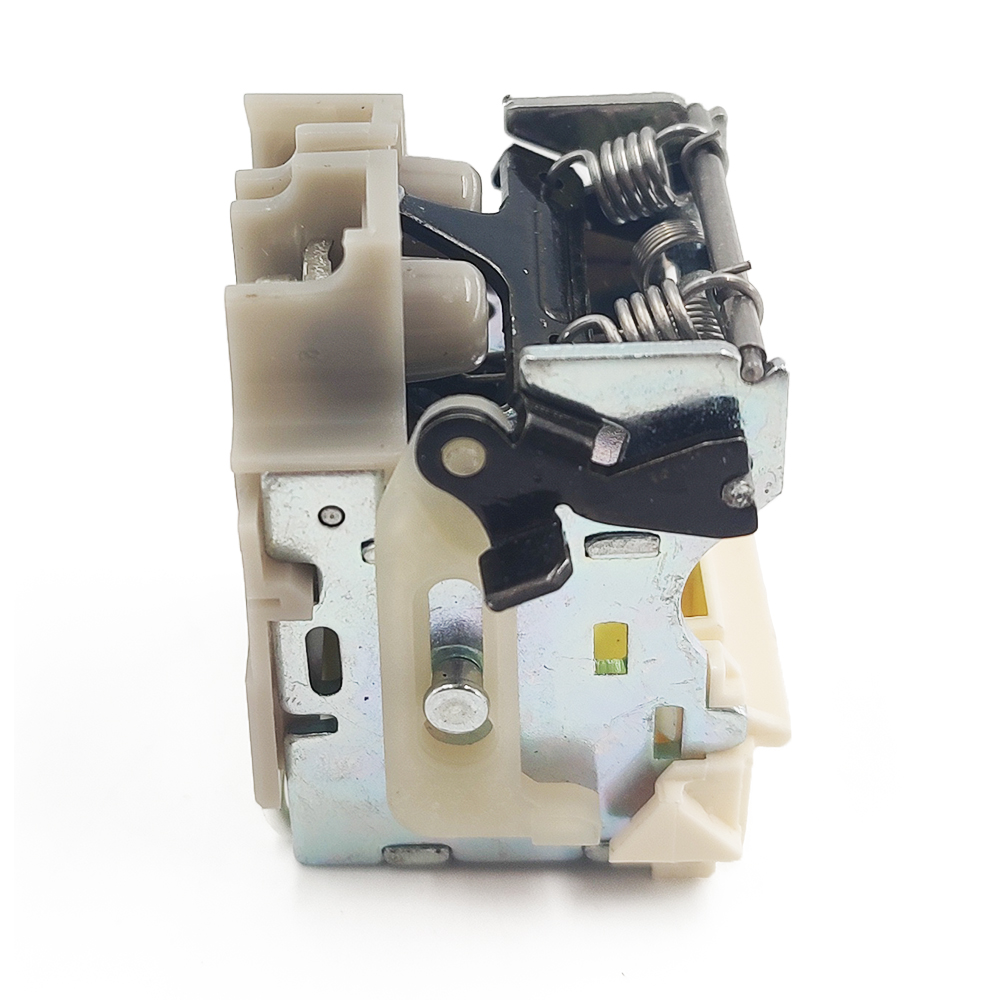

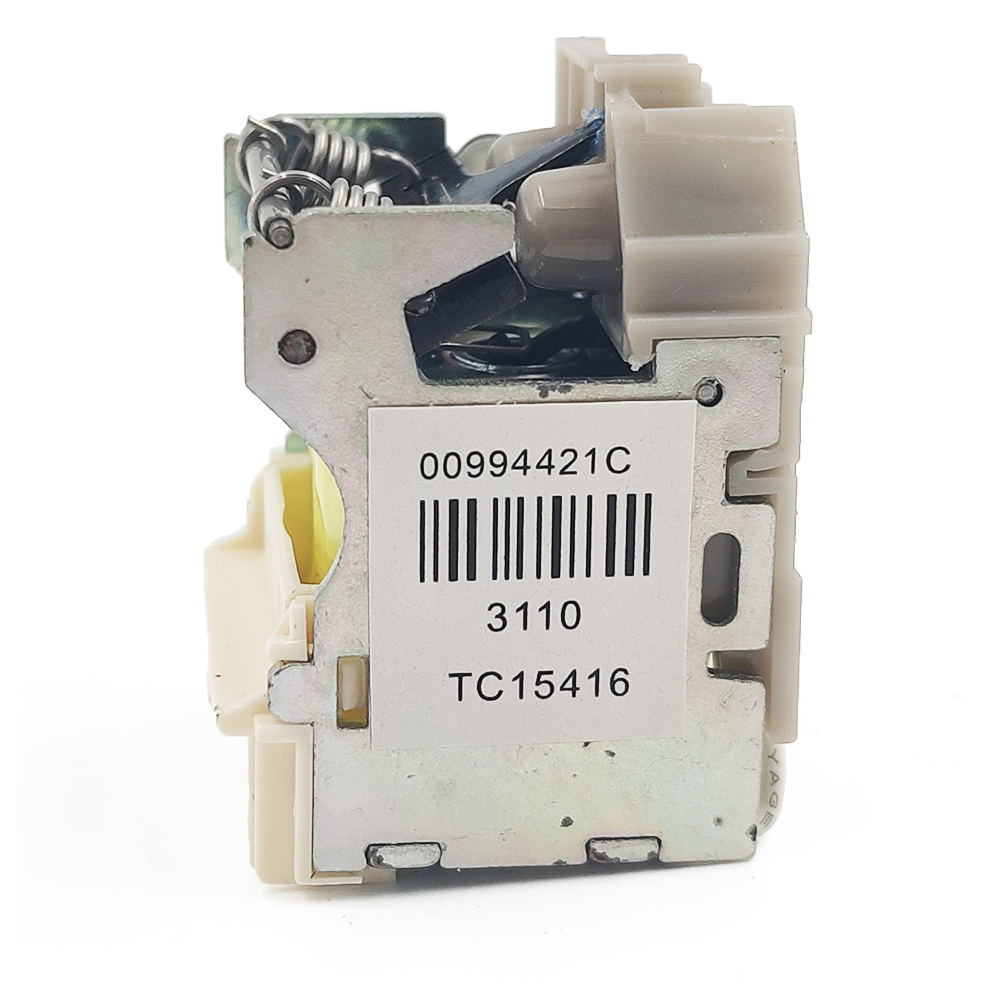

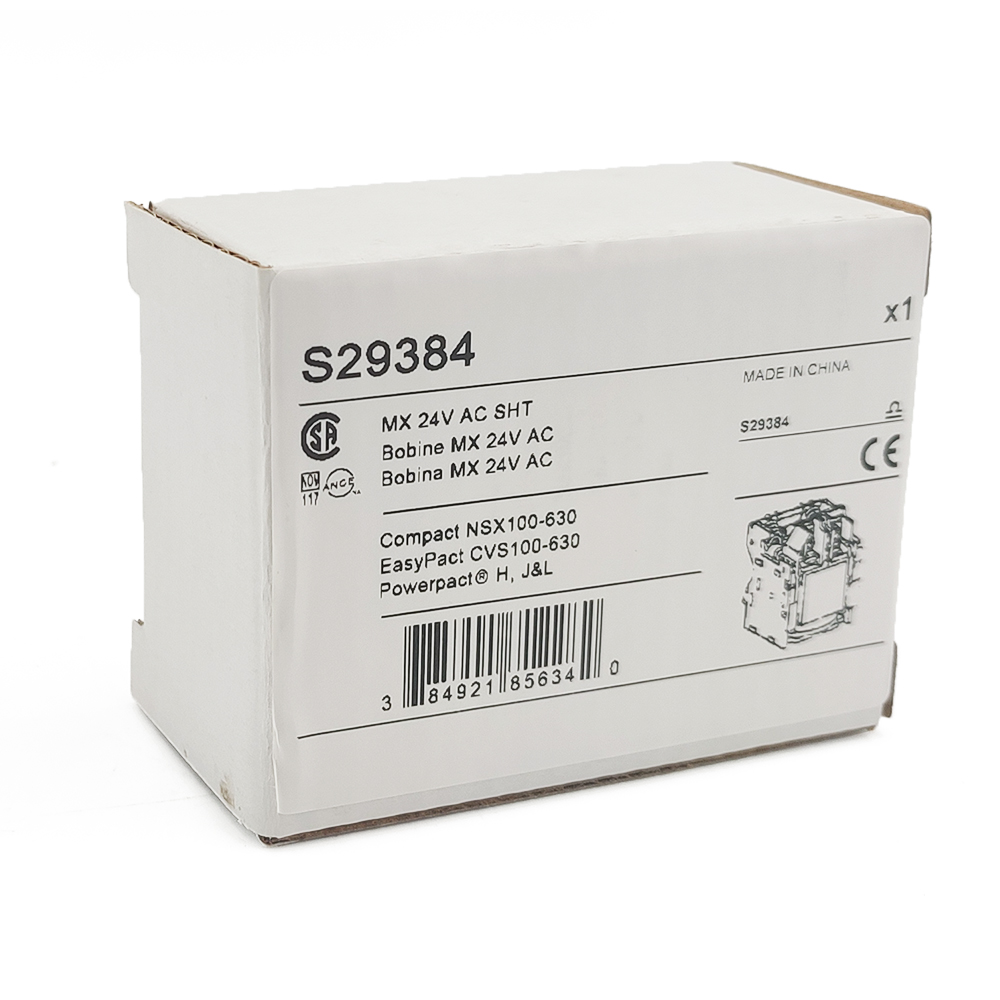

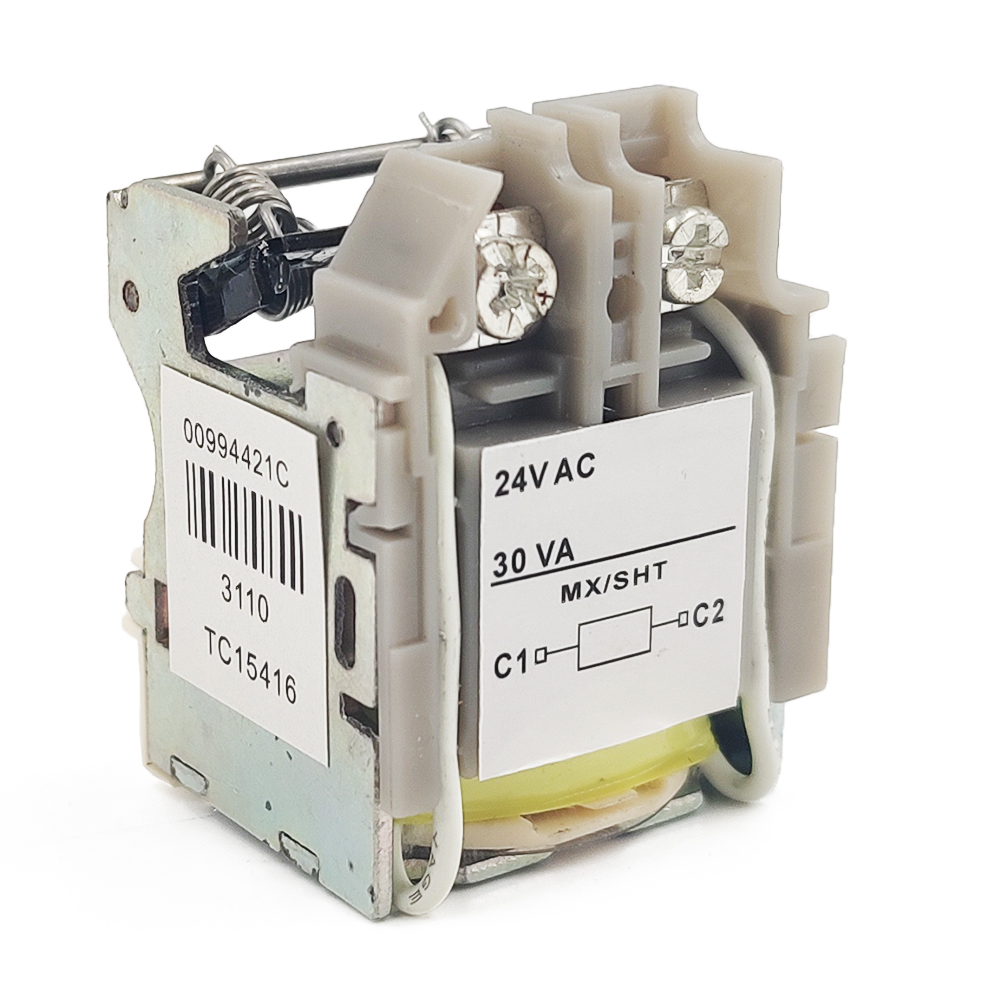

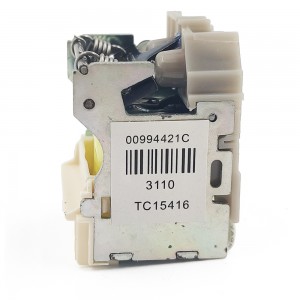

LV429384 Shunt Coil MX 24V S29384 fit for ComPact NSX Circuit Breaker

Short Description:

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Send email to us Download as PDF

Product Detail

Product Tags

Product Series	ComPacT
product short name	MX
product type	Instantaneous voltage coil
Applications	Remote control
Scope of application	ComPacT NSX new generation ComPacT NSX DC new generation ComPact NSX ComPact NSX DC EasyPact CVS Powerpact range of multi-standard products
Voltage trip type	Open coil shunt trip
Control loop voltage	24V AC 50/60Hz
