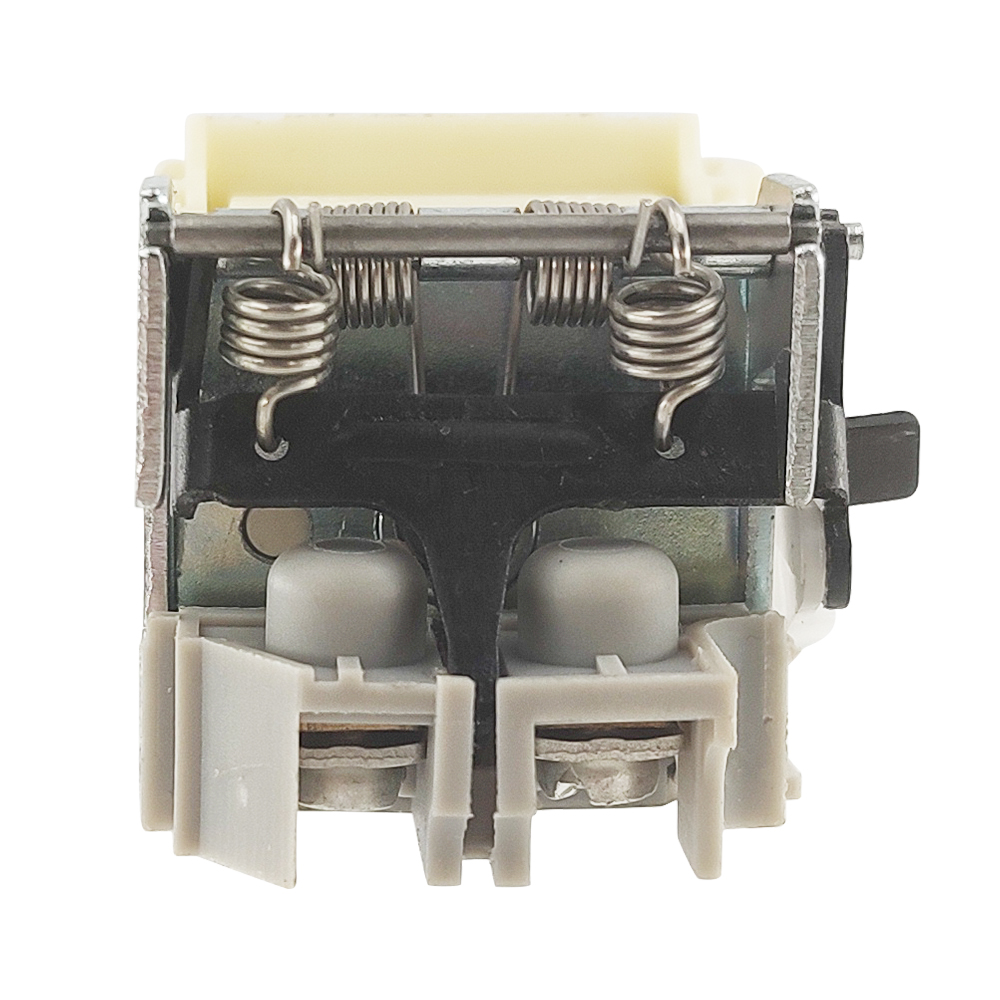

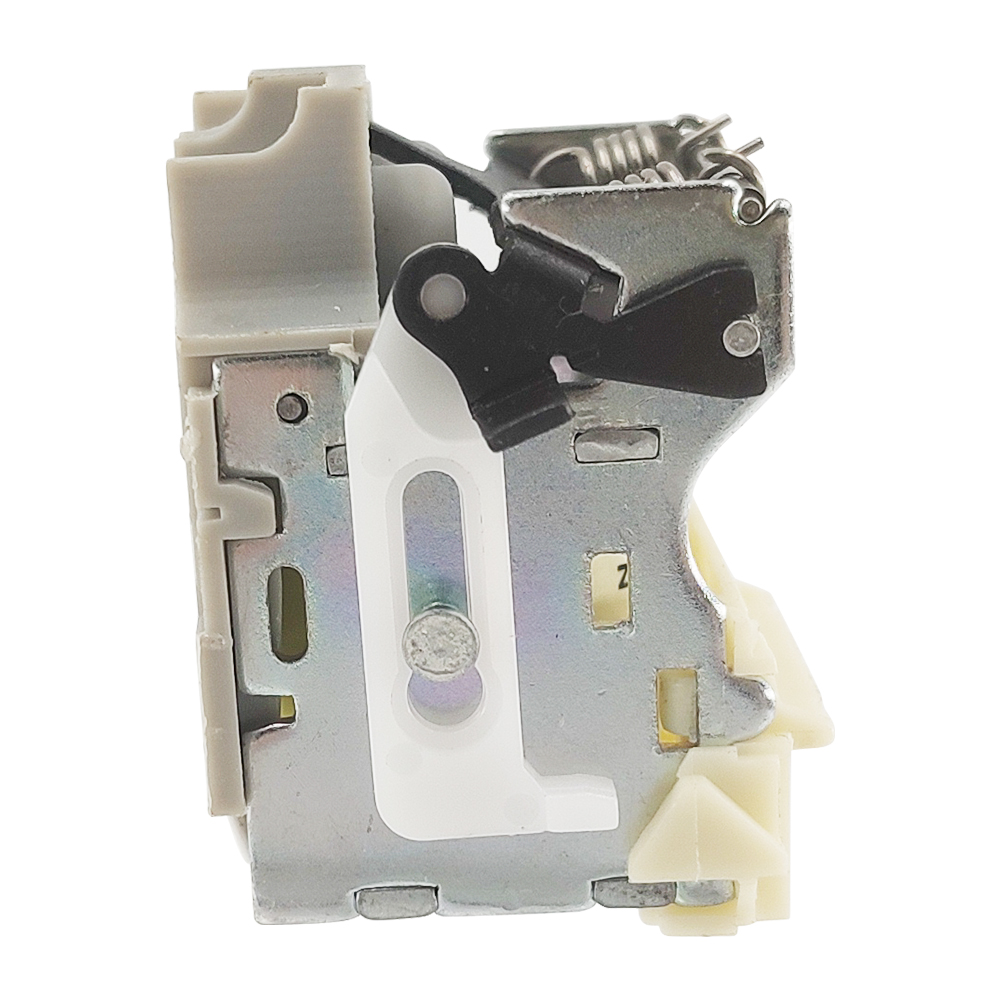

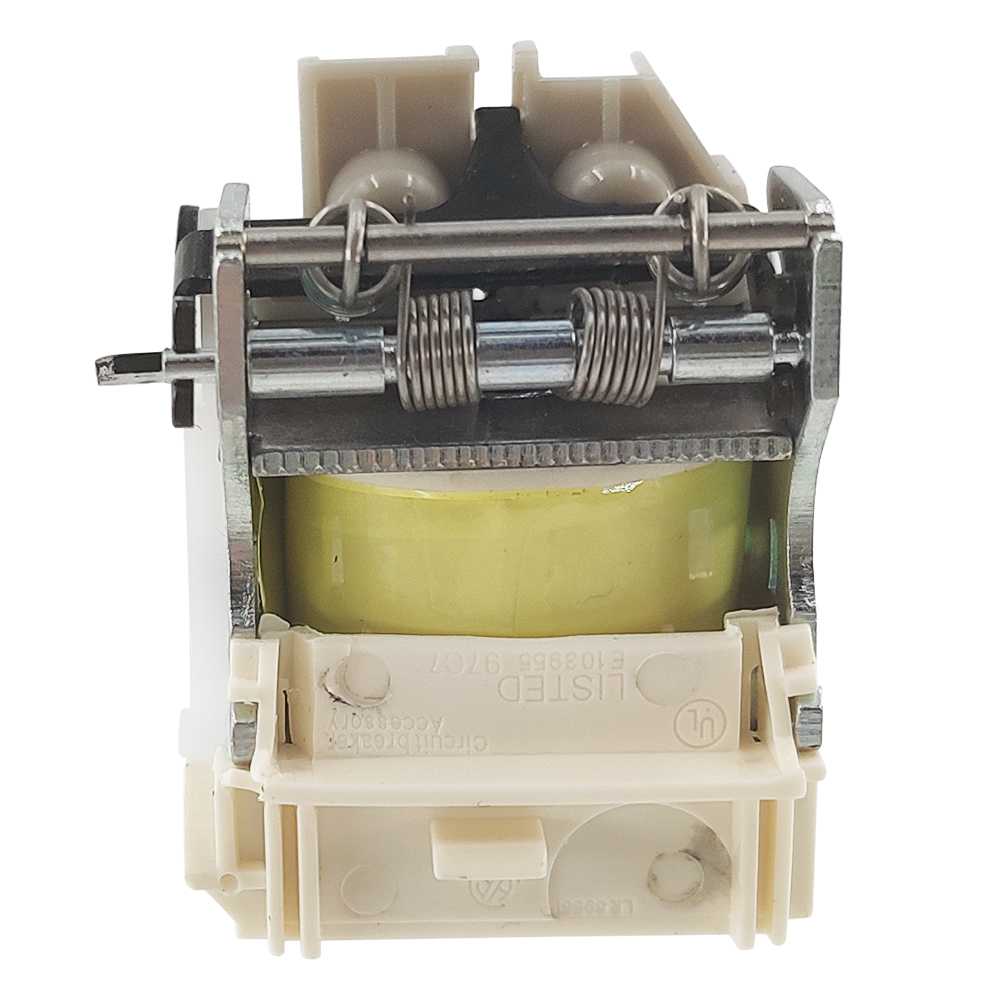

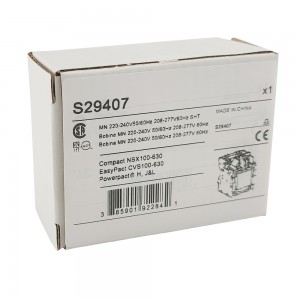

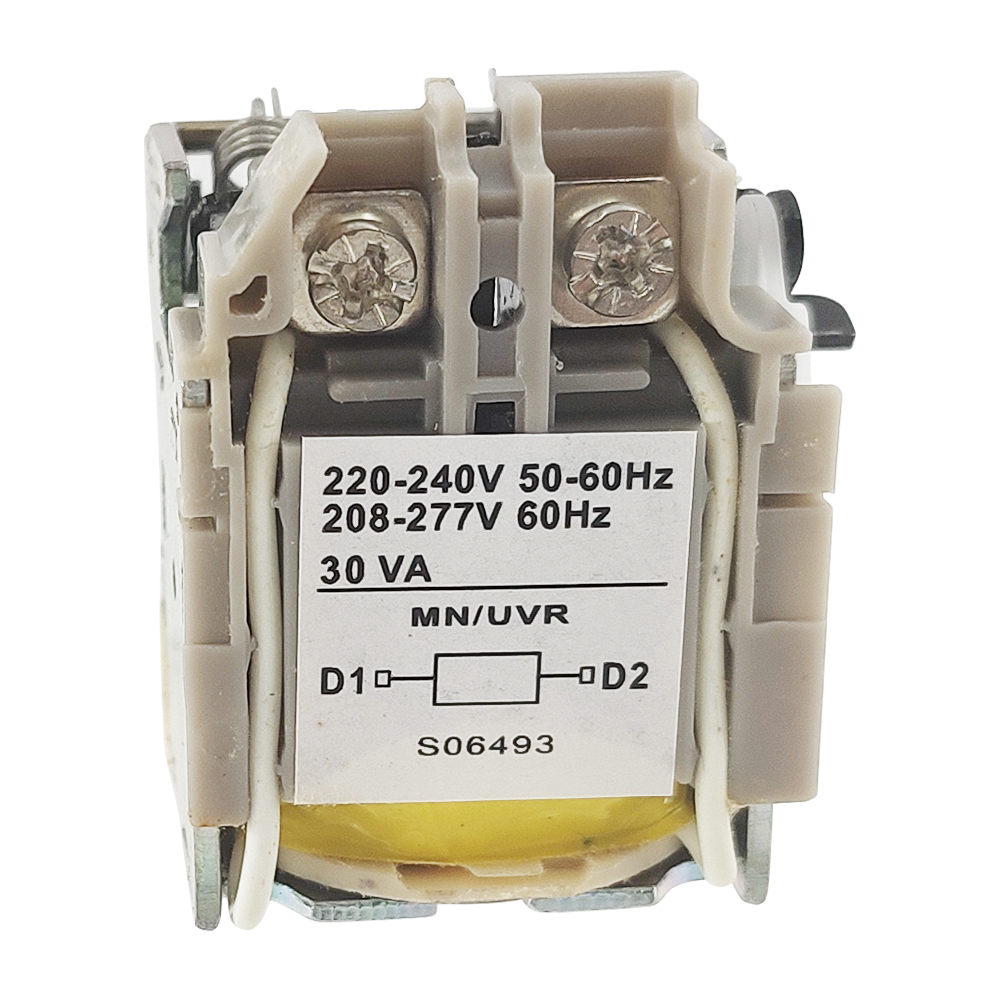

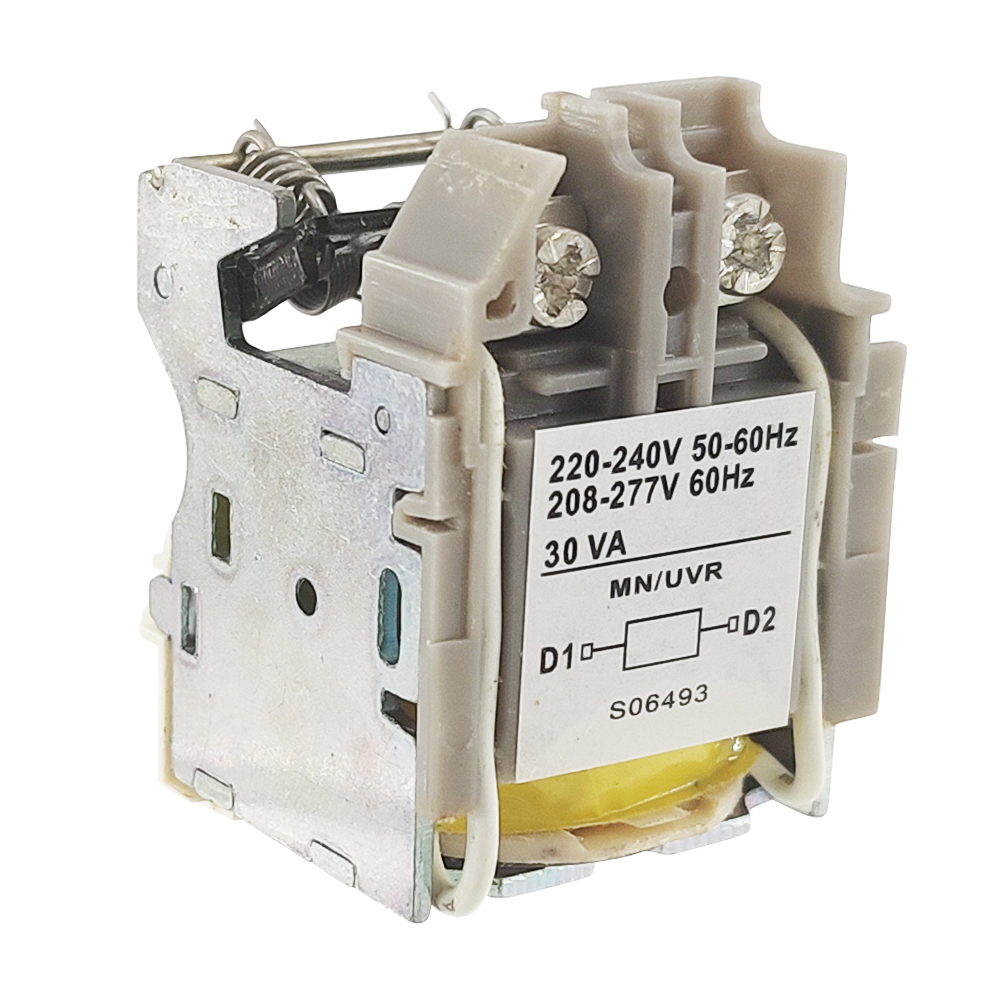

LV429407 MN undervoltage release 208-277V 60Hz 220-240V 50/60Hz S29407

Short Description:

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Send email to us Download as PDF

Product Detail

Product Tags

Product Series	ComPacT
product short name	MN
product type	Instantaneous voltage coil
Applications	Remote control
Scope of application	ComPacT NSX new generation ComPacT NSX DC new generation ComPact NSX ComPact NSX DC EasyPact CVS Powerpact range of multi-standard products
Voltage trip type	Open coil undervoltage trip
Control loop voltage	220…240 V AC 50/60 Hz 208…277 V AC 60 Hz
