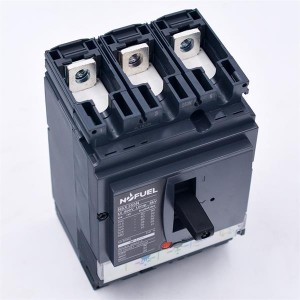

NSX400N Moulded Case Circuit Breaker 3pole 50KA 400A with Micrologic 2.3 Trip unit

Short Description:

Compact NSX is a full range of high performance molded case circuit breakers (MCCB) in 2 frame sizes designed to meet your needs from thermal-magnetic to advanced Micrologic trip units. This range will soon feature integrated earth leakage protection.

FOB Price: US $5 - 499 / Piece

Supply Ability: 5000 Pcs per Month

Payment Terms: L/C, D/P, T/T, Paypal

Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V

Brand : Nofuel

Send email to us Download as PDF

Product Detail

Product Tags

Specifications:

1.Flexible installation: any position; switchboard or wall-mounted

2.Nominal current: 16 to 630 A

3.9 Breaking capacities for the 2 sizes of circuit breakers:

- up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V

- up to 630 A: 36, 50, 70, 100, 150, 200 kA at 41

- both size of circuit breakers with 75 & 100 kA at 690 V

4.Large range of electronic and thermal-magnetic protections

Applications：

An excellent choice for all standard and specific applications, including:

1.Standard applications: industries, buildings, infrastructures

2.Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers

Typpe			NSX100	NSX250		NSX400	NSX630
Rated current In(A)			16...100A	12...250A		250...400A	400...630A
Number of poles			3	1	3	3	3
Rated voltage Ue(V)			AC-380V-69V DC250
Rated insulation Voltage Ui(V)			AC690V
Short-circuit Interrupting capacity Icu/Ics	AC	690V	-	14/7		35/18	35/18
		500V	-	14/7		35/18	35/18
		440V	20/10	50/25		100/75	100/75
		415V	25/13	70/70		100/75	100/75
		380V	25/13	70/70		100/75	100/75
		230V	65//33	100/100		200/150	200/150
	DC	250V	10/5	20/10		20/10	20/10
Dimensions(mm)		a	77	35	105	140	210
		b	124	153		258	275
		c	67	86		104	111
		ca	77	108		138	168
Weight(kg)			1	0.7	2.4	6.1	9.4
Electrical-operation device			●	●		●	●
Automatic tripping device			Thermal-magnetic	Thermal-magnetic		Thermal-magnetic	Thermal-magnetic

NSX Breaker with TM-D Trip unit	Part Number	Part Number
Compact NSX100F (36 kA 380/415 V)	3P 3D	4P 3D
Compact NSX100F (36 kA 380/415 V) TM16D	LV429637	LV429647
Compact NSX100F (36 kA 380/415 V) TM25D	LV429636	LV429646
Compact NSX100F (36 kA 380/415 V) TM32D	LV429635	LV429645
Compact NSX100F (36 kA 380/415 V) TM40D	LV429634	LV429644
Compact NSX100F (36 kA 380/415 V) TM50D	LV429633	LV429643
Compact NSX100F (36 kA 380/415 V) TM63D	LV429632	LV429642
Compact NSX100F (36 kA 380/415 V) TM80D	LV429631	LV429641
Compact NSX100F (36 kA 380/415 V) TM100D	LV429630	LV429640
Compact NSX160F (36 kA 380/415 V)	3P 3D	4P 3D
Compact NSX160F (36 kA 380/415 V) TM80D	LV430633	LV430643
Compact NSX160F (36 kA 380/415 V) TM100D	LV430632	LV430642
Compact NSX160F (36 kA 380/415 V) TM125D	LV430631	LV430641
Compact NSX160F (36 kA 380/415 V) TM160D	LV430630	LV430640
Compact NSX250F (36 kA 380/415 V)	3P 3D	4P 3D
Compact NSX250F (36 kA 380/415 V) TM125D	LV431633	LV431643
Compact NSX250F (36 kA 380/415 V) TM160D	LV431632	LV431642
Compact NSX250F (36 kA 380/415 V) TM200D	LV431631	LV431641
Compact NSX250F (36 kA 380/415 V) TM250D	LV431630	LV431640
Compact NSX100N (50 kA 380/415 V)	3P 3D	4P 3D
Compact NSX100N (50 kA 380/415 V) TM16D	LV429847	LV429857
Compact NSX100N (50 kA 380/415 V) TM25D	LV429846	LV429856
Compact NSX100N (50 kA 380/415 V) TM32D	LV429845	LV429855
Compact NSX100N (50 kA 380/415 V) TM40D	LV429844	LV429854
Compact NSX100N (50 kA 380/415 V) TM50D	LV429843	LV429853
Compact NSX100N (50 kA 380/415 V) TM63D	LV429842	LV429852
Compact NSX100N (50 kA 380/415 V) TM80D	LV429841	LV429851
Compact NSX100N (50 kA 380/415 V) TM100D	LV429840	LV429850
Compact NSX160N (50 kA 380/415 V)	3P 3D	4P 3D
Compact NSX160N (50 kA 380/415 V) TM80D	LV430843	LV430853
Compact NSX160N (50 kA 380/415 V)TM100D	LV430842	LV430852
Compact NSX160N (50 kA 380/415 V) TM125D	LV430841	LV430851
Compact NSX160N (50 kA 380/415 V) TM160D	LV430840	LV430850
Compact NSX250N (50 kA 380/415 V)	3P 3D	4P 3D
Compact NSX250N (50 kA 380/415 V) TM125D	LV431833	LV431843
Compact NSX250N (50 kA 380/415 V) TM160D	LV431832	LV431842
Compact NSX250N (50 kA 380/415 V) TM200D	LV431831	LV431841
Compact NSX250N (50 kA 380/415 V) TM250D	LV431830	LV431840
Compact NSX100H (70 kA 380/415 V)	3P 3D	4P 3D
Compact NSX100H (70 kA 380/415 V) TM16D	LV429677	LV429687
Compact NSX100H (70 kA 380/415 V) TM25D	LV429676	LV429686
Compact NSX100H (70 kA 380/415 V) TM32D	LV429675	LV429685
Compact NSX100H (70 kA 380/415 V) TM40D	LV429674	LV429684
Compact NSX100H (70 kA 380/415 V) TM50D	LV429673	LV429683
Compact NSX100H (70 kA 380/415 V) TM63D	LV429672	LV429682
Compact NSX100H (70 kA 380/415 V) TM80D	LV429671	LV429681
Compact NSX100H (70 kA 380/415 V) TM100D	LV429670	LV429680
Compact NSX160H (70 kA 380/415 V)	3P 3D	4P 3D
Compact NSX160H (70 kA 380/415 V) TM80D	LV430673	LV430683
Compact NSX160H (70 kA 380/415 V) TM100D	LV430672	LV430682
Compact NSX160H (70 kA 380/415 V) TM125D	LV430671	LV430681
Compact NSX160H (70 kA 380/415 V) TM160D	LV430670	LV430680
Compact NSX250H (70 kA 380/415 V)	3P 3D	4P 3D
Compact NSX250H (70 kA 380/415 V) TM125D	LV431673	LV431683
Compact NSX250H (70 kA 380/415 V) TM160D	LV431672	LV431682
Compact NSX250H (70 kA 380/415 V) TM200D	LV431671	LV431681
Compact NSX250H (70 kA 380/415 V)TM250D	LV431670	LV431680
NSX Breaker with Mic.2.3 Trip unit	Part Number	Part Number
NSX400F 250A with Micrologic 2.3 (LS0I)	LV432682	LV432683
NSX400F 400A with Micrologic 2.3 (LS0I)	LV432676	LV432677
NSX630F 630A with Micrologic 2.3 (LS0I)	LV432876	LV432877
NSX400N 250A with Micrologic 2.3 (LS0I)	LV432707	LV432708
NSX400N 400A with Micrologic 2.3 (LS0I)	LV432693	LV432694
NSX630N 630A with Micrologic 2.3 (LS0I)	LV432893	LV432894
NSX Breakers without trip unit	3P 3D	4P 3D
NSX100F (36kA 380/415V)	LV429003	LV429008
NSX100N (50kA 380/415V)	LV429006	LV429011
NSX100H (70kA 380/415V)	LV429004	LV429009
NSX100S (100kA 380/415V)	LV429018	LV429019
NSX100L (150kA 380/415V)	LV429005	LV429010
NSX160F (36kA 380/415V)	LV430403	LV430408
NSX160N (50kA 380/415V)	LV430406	LV430411
NSX160H (70kA 380/415V)	LV430404	LV430409
NSX160S (100kA 380/415V)	LV430391	LV430396
NSX160L (150kA 380/415V)	LV430405	LV430410
NSX250F (36kA 380/415V)	LV431403	LV431408
NSX250N (50kA 380/415V)	LV431406	LV431411
NSX250H (70kA 380/415V)	LV431404	LV431409
NSX250S (100kA 380/415V)	LV431391	LV431396
NSX250L (150kA 380/415V)	LV431405	LV431410
NSX400F (36kA 380/415V)	LV432413	LV432415
NSX400N (50kA 380/415V)	LV432403	LV432408
NSX400H (70kA 380/415V)	LV432404	LV432409
NSX400S (100kA 380/415V)	LV432414	LV432416
NSX400L (150 kA 380/415V)	LV432405	LV432410
NSX630F (36kA 380/415V)	LV432813	LV432815
NSX630N (50kA 380/415V)	LV432803	LV432808
NSX630H (70kA 380/415V)	LV432804	LV432809
NSX630S (100kA 380/415V)	LV432814	LV432816
NSX630L (150 kA 380/415V)	LV432805	LV432810
