S29450 Circuit Breaker Auxiliary Switch PowerPact Auxiliary Contact 29450

Short Description:

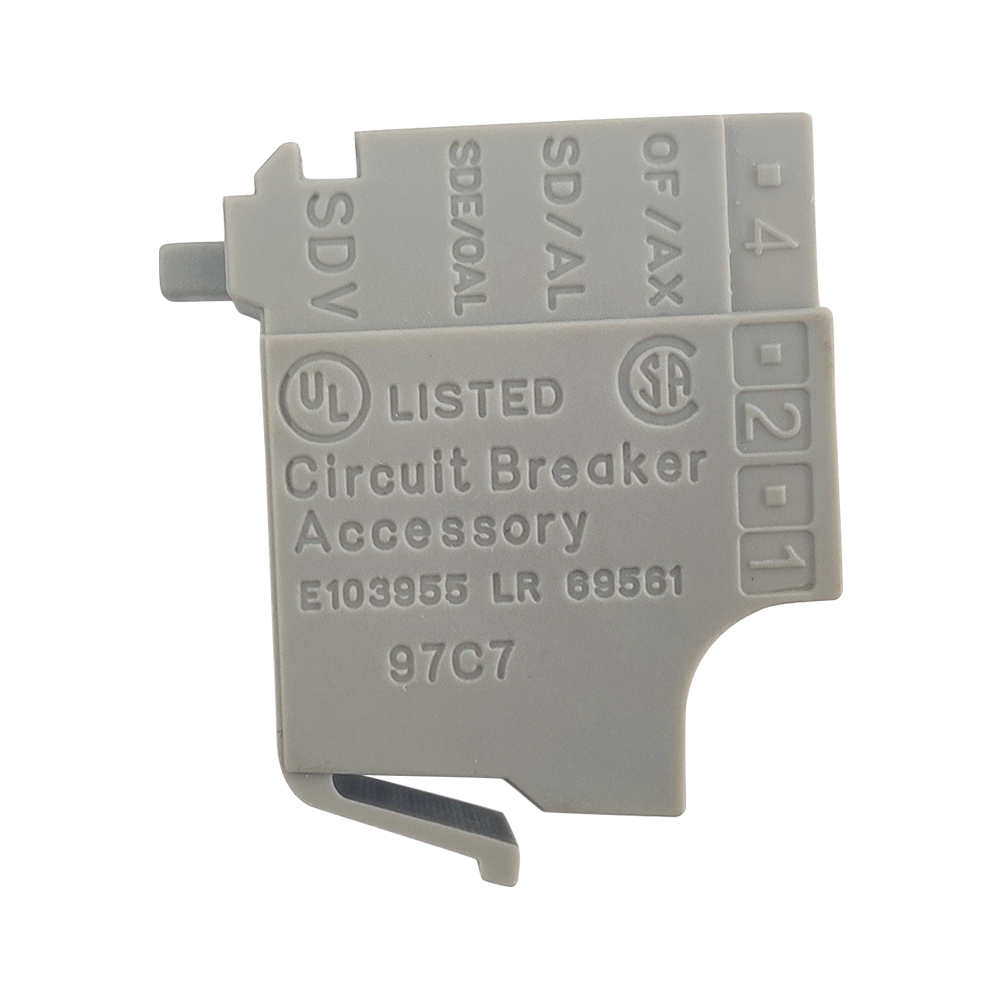

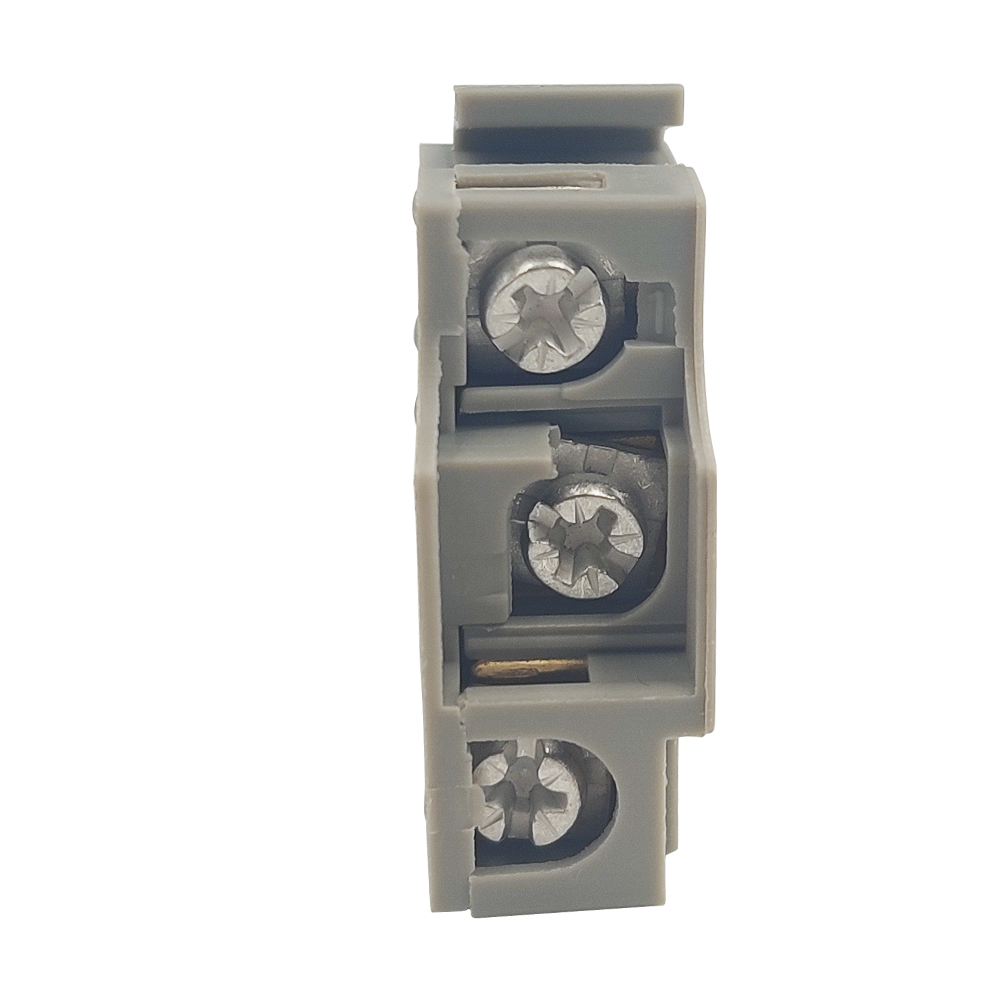

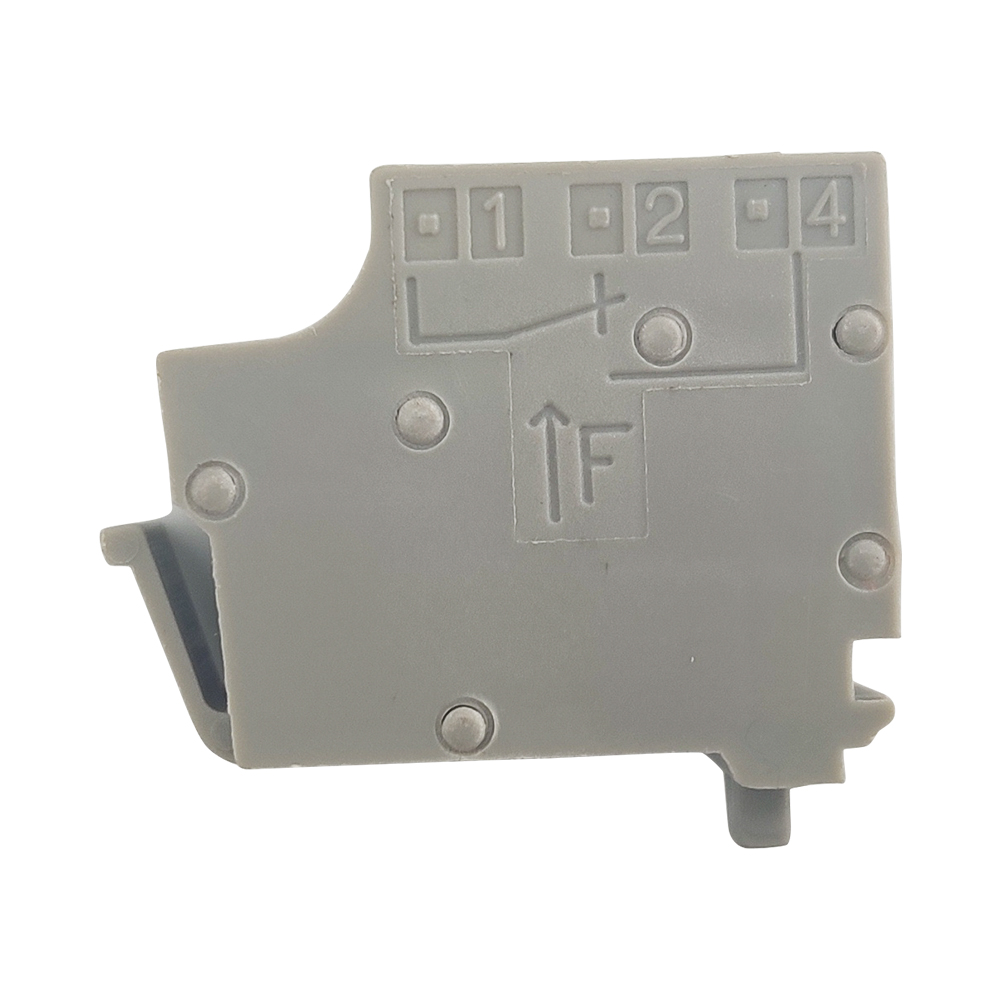

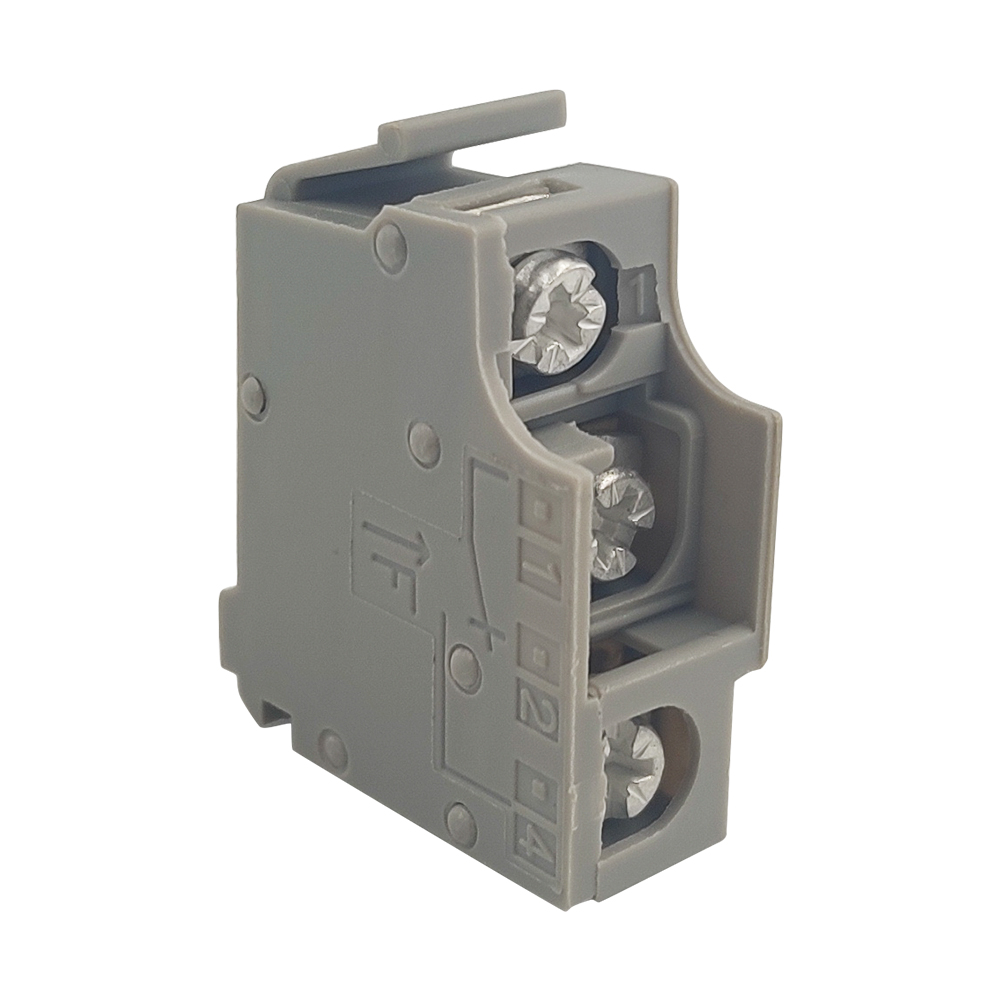

It is a single standard auxiliary contact that provides all the different indications remotely for ComPact NSX, ComPact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for ComPact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC for utilization categories are AC12/AC15/DC12/DC14. Screwless connections with spring terminals provide a fast and reliable connection. The section of connected cables is between 0.5 mm² (AWG20) and 1.5 mm² (AWG16). It complies with IEC 60947-5-1 standard.


Product Detail

Product Tags

Product or component type Auxiliary contact
Device short name OF
SD
SDE
SDV
Device application Breaker status monitoring
Range compatibility ComPact (ComPact NS630b…1600)
ComPact (ComPact NS1600b…3200)
ComPact (ComPacT INS)
ComPact (Compact INV)
ComPact (ComPact NSX)
EasyPact (EasyPact CVS)
PowerPact (PowerPact Multistandard)
ComPact (ComPact NSX DC)
Signal contacts composition 1 NO/NC
