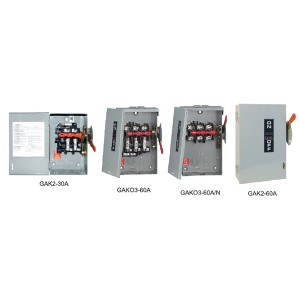

Flexibility
- 30-60 amperes
- NEMA Type 1
- Fusible or Non-Fusible
- 240 Vac / 250 Vdc
- 2 pole or 3 pole
- Horsepower rated
User Safety
- Highly visible ON/OFF label
- Direct-drive, quick-make, quick–break mechanism “snaps” the contacts open and closed, providing positive ON/OFF indication
- Highly visible, easy to grip red handle that accepts 1 padlock in the OFF position
- Integral cover interlock
- Visible confirmation of plated blade contacts
Installation Ease
- Wide, unobstructed gutter
- Self-leveling three-point mounting pattern
Rugged Durability
- NEMA Type 1 enclosures—powder coat painted galvanized steel
| Number | or | Ampere | 240 Volts | DC | ||||
| Outdoor | Rating | NEC | Time | 125 | 250 | |||
| Front Type | Standard | Delay | Volts | Volts | ||||
| 1-ph | 3-ph | 1-ph | 3-ph | |||||
| Fusible; Two-pole, 120/240 and 240 volts ac; 250 volts dc(30-100 Amps only); Three-wire SN, 240 volts ac. | ||||||||
| TG32-30A | indoor | 30 | 1.5 | 3 | 3 | 7.5 | 2 | 5 |
| TG32-60A | indoor | 60 | 3 | 7.5 | 10 | 15 | 3 | 10 |
| TGKO32-30A | outdoor | 30 | 1.5 | 3 | 3 | 7.5 | 2 | 5 |
| TGKO32-60A | outdoor | 60 | 3 | 7.5 | 10 | 15 | 3 | 10 |
| Three-pole, 240 volts ac. | ||||||||
| TGK33-30A | indoor | 30 | 1.5 | 3 | 3 | 7.5 | - | 5 |
| TGK33-60A | indoor | 60 | 3 | 7.5 | 10 | 15 | 3 | 10 |
| TGKO33-30A | outdoor | 30 | 1.5 | 3 | 3 | 7.5 | - | 5 |
| TGKO33-60A | outdoor | 60 | 3 | 7.5 | 10 | 15 | 3 | 10 |
| Four-wire SN, 208/120 and 240 volts ac. | ||||||||
| TGK43-30A | indoor | 30 | 1.5 | 3 | 3 | 7.5 | - | 5 |
| TGK43-60A | indoor | 60 | 3 | 7.5 | 10 | 15 | 3 | 10 |
| TGKO43-30A | outdoor | 30 | 1.5 | 3 | 3 | 7.5 | - | 5 |
| TGKO43-60A | outdoor | 60 | 3 | 7.5 | 10 | 15 | 3 | 10 |
| No fuse; Two-pole, 240 volts ac(use three-pole switch for two-pole application); 250 volts dc(20-60 Amps only); Three-pole, 240 volts ac or two-pole with switching neutral. | ||||||||
| TGK3-30A/N | indoor | 30 | 3 | 7.5 | 3 | 7.5 | - | 5 |
| TGK3-60A/N | indoor | 60 | 10 | 15 | 10 | 15 | 3 | 10 |
| TGKO3-30A/N | outdoor | 30 | 3 | 7.5 | 3 | 7.5 | - | 5 |
| TGKO3-60A/N | outdoor | 60 | 10 | 15 | 10 | 15 | 3 | 10 |
