Features:
1.3HP to 75HP
2.DIN Rail-Mountable up to 95A frame
3.IEC 60947 CE and RoHS compliant
4.Surface or DIN-rail mountable
5.Compact Size
6.2 year warranty
7.Optional Accessories Include:
8.Auxiliary contact blocks
9.Replacement coils

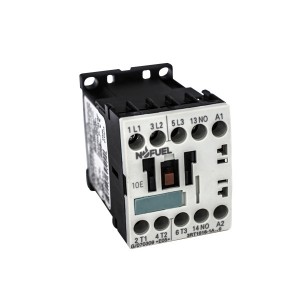

| 3RT1015 | Power contactor, AC-3 7 A, 3 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1015 |
| 3RT1016 | Power contactor, AC-3 9 A, 4 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1016 |

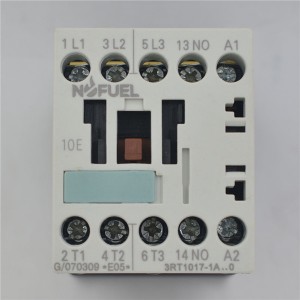

| 3RT1017 | Power contactor, AC-3 12 A, 5.5 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1017 |
| 3RT1023 | Power contactor, AC-3 9 A, 4 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1023 |
| 3RT1024 | Power contactor, AC-3 12 A, 5.5 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1024 |
| 3RT1025 | Power contactor, AC-3 17 A, 7.5 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1025 |
| 3RT1026 | Power contactor, AC-3 25 A, 11 kW / 400 V 3-pole Size S0, Screw terminal direct replacement Siemens Sirius 3RT1026 |

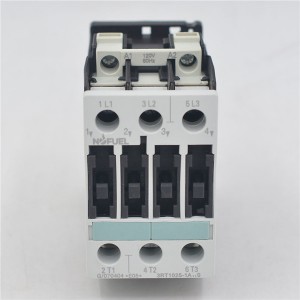

| 3RT1034 | Power contactor, AC-3 32 A, 15 kW / 400 V 3-pole Size S2, Screw terminal direct replacement Siemens Sirius 3RT1034 |
| 3RT1035 | Power contactor, AC-3 40 A, 18.5 kW / 400 V 3-pole Size S2, Screw terminal direct replacement Siemens Sirius 3RT1035 |
| 3RT1036 | Power contactor, AC-3 50 A, 22 kW / 400 V 3-pole Size S2, Screw terminal direct replacement Siemens Sirius 3RT1036 |
| 3RT1044 | Power contactor, AC-3 65 A, 30 kW / 400 V 3-pole Size S3, Screw terminal direct replacement Siemens Sirius 3RT1044 |
| 3RT1045 | Power contactor, AC-3 80 A, 37 kW / 400 V 3-pole Size S3, Screw terminal direct replacement Siemens Sirius 3RT1045 |
| 3RT1046 | Power contactor, AC-3 95 A, 45 kW / 400 V 3-pole Size S3, Screw terminal direct replacement Siemens Sirius 3RT1046 |
| AC Control supply Model No. |
Standard Part Number |
Rade Amp AC-3 400 V |
AC-3 Rated operational power |
3-phase motor rating |
Frame Size | Weight in kg |
| A 400V | KW@400V | HP@480V | ||||
| 3RT1015 | 3RT1015 | 7 | 3 | 3 | S00 | 0.4 |
| 3RT1016 | 3RT1016 | 9 | 4 | 5 | S00 | 0.4 |
| 3RT1017 | 3RT1017 | 12 | 5.5 | 7.5 | S00 | 0.4 |
| 3RT1023 | 3RT1023 | 9 | 4 | 5 | S0 | 0.6 |
| 3RT1024 | 3RT1024 | 12 | 5.5 | 7.5 | S0 | 0.8 |
| 3RT1025 | 3RT1025 | 17 | 7.5 | 10 | S0 | 0.8 |
| 3RT1026 | 3RT1026 | 25 | 11 | 15 | S0 | 1.2 |
| 3RT1034 | 3RT1034 | 32 | 15 | 25 | S2 | 1.2 |
| 3RT1035 | 3RT1035 | 40 | 18.5 | 30 | S2 | 1.2 |
| 3RT1036 | 3RT1036 | 50 | 22 | 40 | S2 | 2.2 |
| 3RT1044 | 3RT1044 | 65 | 30 | 50 | S3 | 2.2 |
| 3RT1045 | 3RT1045 | 80 | 37 | 60 | S3 | 2.2 |
| 3RT1046 | 3RT1046 | 95 | 45 | 75 | S3 | 3.5 |
|
Nofuel Part # |
Coil Voltage |
HP Ratings @230V |
HP Ratings @460V |
Amp |
|
3RT1015 |
120 |
2 |
3 |
7 |
|
3RT1015-1AB01 |
24 |
2 |
3 |
7 |
|
3RT1015-1AK61 |
120 |
2 |
3 |
7 |
|
3RT1015-1AP61 |
240 |
2 |
3 |
7 |
|
3RT1015-1AV61 |
480 |
2 |
3 |
7 |
|
3RT1016 |
120 |
3 |
5 |
9 |
|
3RT1016-1AB01 |
24 |
3 |
5 |
9 |
|
3RT1016-1AK61 |
120 |
3 |
5 |
9 |
|
3RT1016-1AP61 |
240 |
3 |
5 |
9 |
|
3RT1016-1AV61 |
480 |
3 |
5 |
9 |
|
3RT1017 |
120 |
3 |
7.5 |
12 |
|
3RT1017-1AB01 |
24 |
3 |
7.5 |
12 |
|
3RT1017-1AK61 |
120 |
3 |
7.5 |
12 |
|
3RT1017-1AP61 |
240 |
3 |
7.5 |
12 |
|
3RT1017-1AV61 |
480 |
3 |
7.5 |
12 |
|
3RT1023 |
120 |
3 |
5 |
9 |
|
3RT1023-1AB01 |
24 |
3 |
5 |
9 |
|
3RT1023-1AK61 |
120 |
3 |
5 |
9 |
|
3RT1023-1AP61 |
240 |
3 |
5 |
9 |
|
3RT1023-1AV61 |
480 |
3 |
5 |
9 |
|
3RT1024 |
120 |
3 |
7.5 |
12 |
|
3RT1024-1AB01 |
24 |
3 |
7.5 |
12 |
|
3RT1024-1AK61 |
120 |
3 |
7.5 |
12 |
|
3RT1024-1AP61 |
240 |
3 |
7.5 |
12 |
|
3RT1024-1AV61 |
480 |
3 |
7.5 |
12 |
|
3RT1025 |
120 |
5 |
10 |
17 |
|
3RT1025-1AB01 |
24 |
5 |
10 |
17 |
|
3RT1025-1AK61 |
120 |
5 |
10 |
17 |
|
3RT1025-1AP61 |
240 |
5 |
10 |
17 |
|
3RT1025-1AV61 |
480 |
5 |
10 |
17 |
|
3RT1026 |
120 |
7.5 |
15 |
25 |
|
3RT1026-1AB01 |
24 |
7.5 |
15 |
25 |
|
3RT1026-1AK61 |
120 |
7.5 |
15 |
25 |
|
3RT1026-1AP61 |
240 |
7.5 |
15 |
25 |
|
3RT1026-1AV61 |
480 |
7.5 |
15 |
25 |
|
3RT1034 |
120 |
10 |
25 |
32 |
|
3RT1034-1AB01 |
24 |
10 |
25 |
32 |
|
3RT1034-1AK61 |
120 |
10 |
25 |
32 |
|
3RT1034-1AP61 |
240 |
10 |
25 |
32 |
|
3RT1034-1AV61 |
480 |
10 |
25 |
32 |
|
3RT1035 |
120 |
15 |
30 |
40 |
|
3RT1035-1AB01 |
24 |
15 |
30 |
40 |
|
3RT1035-1AK61 |
120 |
15 |
30 |
40 |
|
3RT1035-1AP61 |
240 |
15 |
30 |
40 |
|
3RT1035-1AV61 |
480 |
15 |
30 |
40 |
|
3RT1036 |
120 |
15 |
40 |
50 |
|
3RT1036-1AB01 |
24 |
15 |
40 |
50 |
|
3RT1036-1AK61 |
120 |
15 |
40 |
50 |
|
3RT1036-1AP61 |
240 |
15 |
40 |
50 |
|
3RT1036-1AV61 |
480 |
15 |
40 |
50 |
|
3RT1044 |
120 |
25 |
50 |
65 |
|
3RT1044-1AB01 |
24 |
25 |
50 |
65 |
|
3RT1044-1AK61 |
120 |
25 |
50 |
65 |
|
3RT1044-1AP61 |
240 |
25 |
50 |
65 |
|
3RT1044-1AV61 |
480 |
25 |
50 |
65 |
|
3RT1045 |
120 |
30 |
60 |
65 |
|
3RT1045-1AB01 |
24 |
30 |
60 |
65 |
|
3RT1045-1AK61 |
120 |
30 |
60 |
65 |
|
3RT1045-1AP61 |
240 |
30 |
60 |
65 |
|
3RT1045-1AV61 |
480 |
30 |
60 |
65 |
|
3RT1046 |
120 |
30 |
75 |
95 |
|
3RT1046-1AB01 |
24 |
30 |
75 |
95 |
|
3RT1046-1AK61 |
120 |
30 |
75 |
95 |
|
3RT1046-1AP61 |
240 |
30 |
75 |
95 |
|
3RT1046-1AV61 |
480 |
30 |
75 |
95 |
