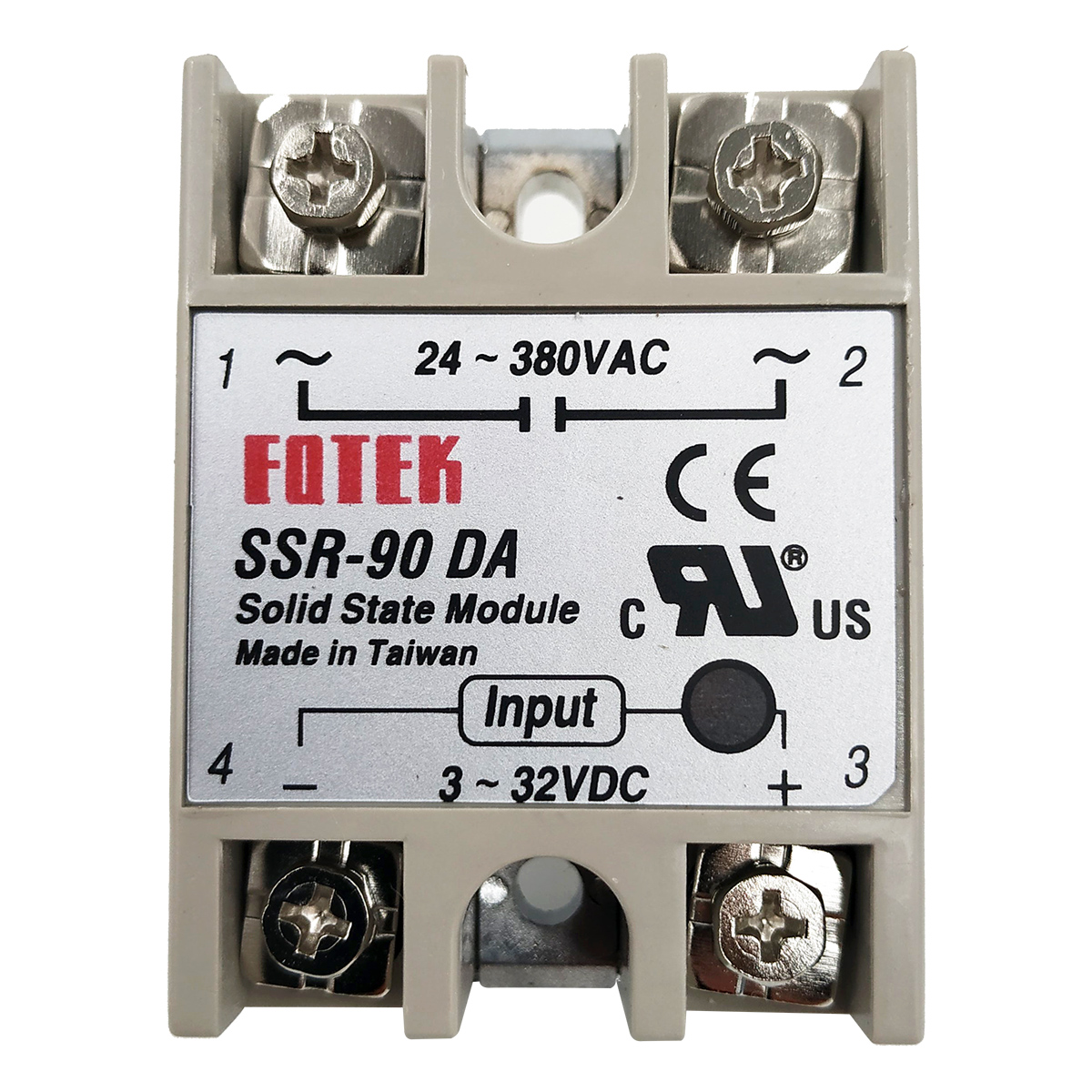

SSR-90DA Fotek Solid State Relay Module 3-32V Input 24-480V Output 90A

Short Description:

1. High Reliability by S.M.T & TQC ( Surface Mounting Technology )
2. High Isolation over than 500Mohm / 500VDC
3. High Dielectric over than 2.5KV
4. Low Enable Current less than 7.5mA / 12VDC CMOS IC or TTL Compatible
5. Low EMI / EFI & Surge by Zero Cross Trigger Method
6. High Surge Current Duration Over 10 Times of Rated Current / One Cycle
7. High Surge Current Duration by Snubber Circuit.

Send email to us Download as PDF

Product Detail

Product Tags

Features

Guiding of model

Ex: SSR – 90 D A – H – R
1 2 3 4 5 6

1> Product

[ SSR ] = Single phase solid state module
[ HPR ] = High power solid state module
[ TSR ] = Three phases solid state module
[ ESR ] = Three phases High power solid state module
[ EZR ] = Plug type solid state module

2> Output current

[ 10 ] = 10A [ 25 ] = 25A [ 40 ] = 40A
[ 50 ] = 50A [ 60 ] = 60A [ 80 ] = 80A

3> Input method

[ D ] = 4 ~ 32VDC
[ A ] = 80 ~ 250VAC
[ L ] = 4 ~ 20mA
[ V ] = Variable resistor

4> Output voltage

[ A ] = AC voltage
[ D ] = DC voltage

5> Output voltage range

[ H ] = High voltage type
[ Non ] = Standard type

6> Control method

[ R ]= Random control
[ Non ] = Zero cross control
