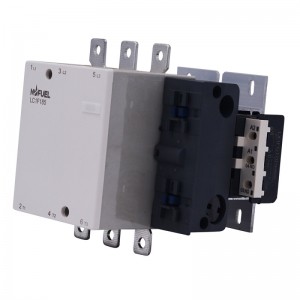

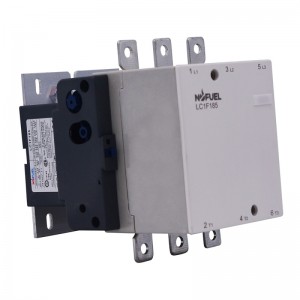

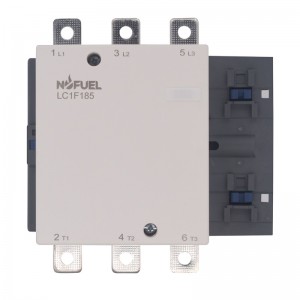

TeSys F Contactors LC1F185 185A 3Pole

Short Description:

TeSys F High power contactors offers high reliability with a long mechanical and electrical life .Applications from 115 up to 800 full-load amps and resistive loads up to 2100 amps, good performace in heavy duty Industry, renewable energies ,resistive, inductive and capacitive circuits

FOB Price: US $5 - 499 / Piece

Supply Ability: 5000 Pcs per Month

Payment Terms: L/C, D/P, T/T, Paypal

Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V

Brand : Nofuel

Send email to us Download as PDF

Product Detail

Product Tags

Part Number	AC3 (1) rating (A)	KW@460V	HP@480V	Weight kg
LC1F115	115	75	75	3.43
LC1F150	150	90	100	3.43
LC1F185	185	110	125	4.65
LC1F225	225	129	150	4.75
LC1F265	265	160	150	7.4
LC1F330	330	220	200	8.6
LC1F400	400	257	250	9.1
LC1F500	500	355	400	11.75
LC1F630	630	400	600	18.8
LC1F800	800	450	800	18.8
LC1F780	780	450	900	39.5

Type	Used for Contactor
LX1-FF	LC1-F115-F150
LX1-FG	LC1-F185-F225
LX1-FH	LC1-F265-F330
LX1-FJ	LC1-F400
LX1-FK	LC1-F500
LX1-FL	LC1-F630
LX1-FK	LC1-F780

Nofuel Part #	Coil Voltage	HP Ratings @230V	HP Ratings @460V	Amp Ratings @AC3
LC1F115	120	40	75	115
LC1F115B7	24	40	75	115
LC1F115G6	120	40	75	115
LC1F115G7	120	40	75	115
LC1F115U7	240	40	75	115
LC1F150	120	50	100	150
LC1F150B7	24	50	100	150
LC1F150G6	120	50	100	150
LC1F150L7	208	50	100	150
LC1F150G7	120	50	100	150
LC1F150U7	240	50	100	150
LC1F185	120	60	125	185
LC1F185B7	24	60	125	185
LC1F185G6	120	60	125	185
LC1F185L7	208	60	125	185
LC1F185G7	120	60	125	185
LC1F185U7	240	60	125	185
LC1F225	120	75	150	225
LC1F225B7	24	75	150	225
LC1F225G6	120	75	150	225
LC1F225L7	208	75	150	225
LC1F225G7	120	75	150	225
LC1F225U7	240	75	150	225
LC1F265	120	75	150	265
LC1F265B7	24	75	150	265
LC1F265G7	120	75	150	265
LC1F265L7	208	75	150	265
LC1F265S7	480	75	150	265
LC1F265U7	240	75	150	265
LC1F330	120	100	200	330
LC1F330B7	24	100	200	330
LC1F330G7	120	100	200	330
LC1F330L7	208	100	200	330
LC1F330S7	480	100	200	330
LC1F330U7	240	100	200	330
LC1F400	120	125	250	400
LC1F400G6	120	125	250	400
LC1F400L7	208	125	250	400
LC1F400N7	415	125	250	400
LC1F400U7	240	125	250	400
LC1F500	120	200	400	500
LC1F500G6	120	200	400	500
LC1F500L7	208	200	400	500
LC1F500N7	415	200	400	500
LC1F500U7	240	200	400	500
LC1F630	120	300	600	630
LC1F630G7	120	300	600	630
LC1F630L7	208	300	600	630
LC1F630N7	415	300	600	630
LC1F630U7	240	300	600	630
LC1F800	120	400	800	800
LC1F800G7	120	400	800	800
LC1F800L7	208	400	800	800
LC1F800N7	415	400	800	800
LC1F800U7	240	400	800	800
LC1F780	120	450	900	1000
LC1F780G7	120	450	900	1000
LC1F780L7	208	450	900	1000
LC1F780N7	415	450	900	1000
LC1F780U7	240	450	900	1000
