Top Suppliers Main Breaker - NC1D2510 IEC Contactor with UL Listed – Simply Buy Detail:

Nofuel NC1D Series Magnetic Contactors have been engineered for superior performance under Hazardous tropical conditions, conforming to IS/IEC 60947-4-1; IS/IEC 60947-1. It’s robust construction with heavy duty silver alloy contacts, encapsulated coil in higher range to withstand wide voltage fluctuations delivers long life. Contactor have high insulation strength, with high making and breaking capacity. The Contactor Base with Télémécanique motor control technology since 1924

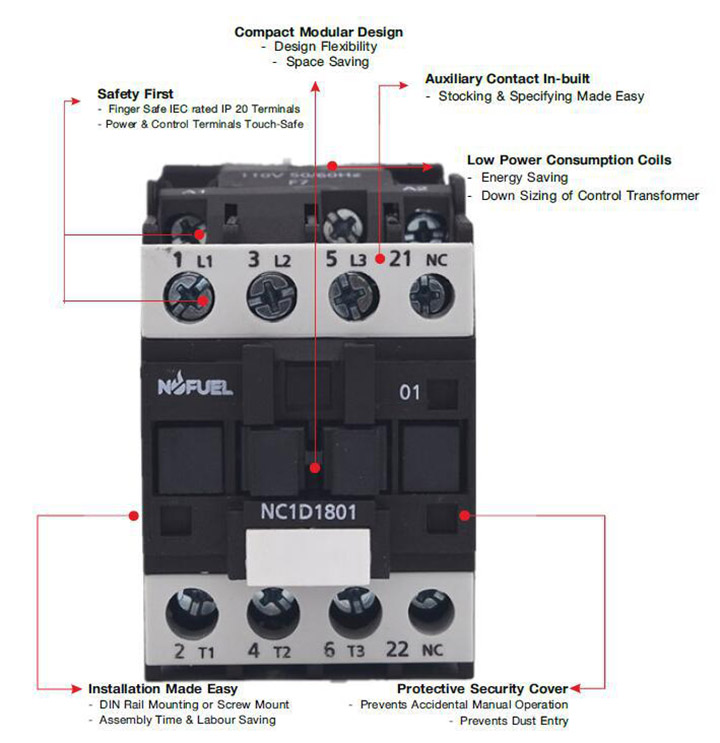

Advantage

  • Extremely easy maintenance
  • Easy coil replacement
  • Low down time for Contactor maintenance
  • Contactor is ideally suitable for standalone applications such as welding, compressor, motor control & machine tools etc

Certificate : UL CSA RU CCC CE RoHS

  • 9A ~ 95A (AC3 rating)
    • 3 & 4 Pole Contactor
    • 4 Frame sizes
    • 115A ~ 800A (AC3 rating)
      • 3 & 4 Pole Contactor
      • 8 Frame sizes

Industrial Applications

  • Motor Controls
  • Pumps
  • Machine Tools
  • Printing & Packaging Machines
  • Compressors
  • Power Supply Solutions
  • HVAC
  • Cranes
  • Elevators & Escalators
  • Windmills
  • Solar Systems

11qa

 TNF2D_RE%CCS_HTCLVW4B@M ~THM{JXM$L~0FWZ1HWSE6TN



Nofuel Contactor Series–  3 Pole

Conforming: IS 13947-4-1 / IEC 60947-4-1

Technical Parameters-Contactor: 9A~95A

AC

Types3 Pole

DC

NC1D-09

NC1D-12

NC1D-18

NC1D-25

NP1D-09

NP1D-12

NP1D-18

NP1D-25

Maximum Rated Current for AC3 Duty

9A

12A

18A

25A

Rated Operational Voltage: Ue

690

Thermal Current: Ith

25A

32A

40A

Power Rating for Motor Control for AC3 Duty Ø <=55°C,415V



Conforming to UL, CSA230V

460/480V

575/600V

KW / HP

4 / 5.5

KW / HP

5.5 / 7.5

KW / HP

9 / 12.5

KW / HP

11 / 15

2

3

5

7.5

5

7.5

10

15

7.5

10

15

20

Mounting Position

±30

Ambient Air Temperature (Operational)

- 5 to + 55°C

Maximum Operating Rate Operations / Hrs.AC / DC

3600

Mechanical Life50-60 Hz

20

Thermal / Electronic Overload Relay

0.10~13.0

13.0~37.0

Auxiliary Contact BlockFront Mounted:

Side Mounted:

1 NO, 1NC, 2NO, 1 NO+1NC, 2NC, 4NO, 3NO+1NC, 2NO+2NC, 1NO+3NC, 4NC

1NO+1NC, 2NC

Pneumatic TimerFront Mounted:

Star Delta Timer:

On Delay 1NO+1NC (0.1~180 Sec)  OFF Delay 1NO+1NC (0.1~180 Sec)

1 NO+1NC (0.1~30 Sec)

Mechanical InterlockHorizontally Mounted:

AC: NC1D09 - NC1D95DC: NP1D09 - NP1D95



Surge Suppressor

Varistor AC/DC:24~48V,110~240V  RC Circuit AC:24~48V,110~240V,

380~440V

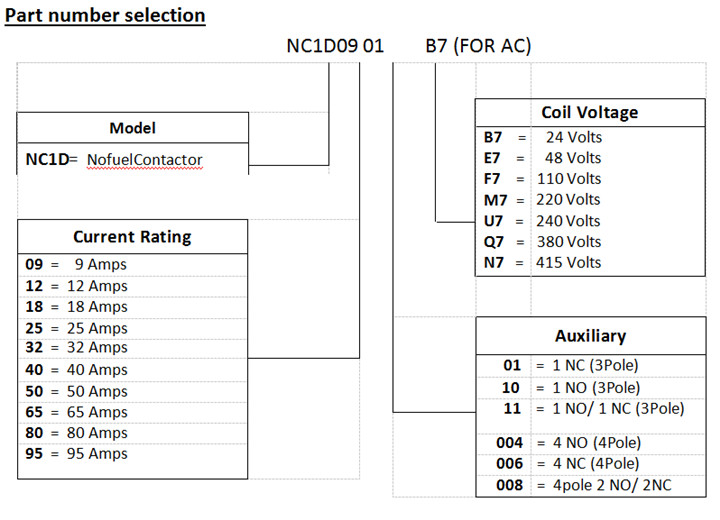

AC Coil Voltage for

3 Pole Contactors 9A~95A & Control Relays

Coils Code

Voltage

TX1-D

24 48 110 220 240 380 415

50/60 Hz

B7 E7 F7 M7 U7 Q7 N7

21344

NC1D-32

NC1D-40

NC1D-50

NC1D-65

NC1D-80

NC1D-95

BLP1D-32

NP1D-40

NP1D-50

NP1D-65

NP1D-80

NP1D-95

32A

40A

50A

65A

80A

95A

690

50A 60A

80A

125A

KW / HP15 / 20

KW / HP

22 / 30

KW / HP

25 / 35

KW / HP

37 / 50

KW / HP

45 / 60

KW / HP

45 / 60

10 10

15

20

25

25

20 30

40

50

60

60

25 30

40

50

60

60

±30

- 5 to + 55°C 3600

50-60 Hz

13.0~37.0

40.0~63.0

63.0~93.0

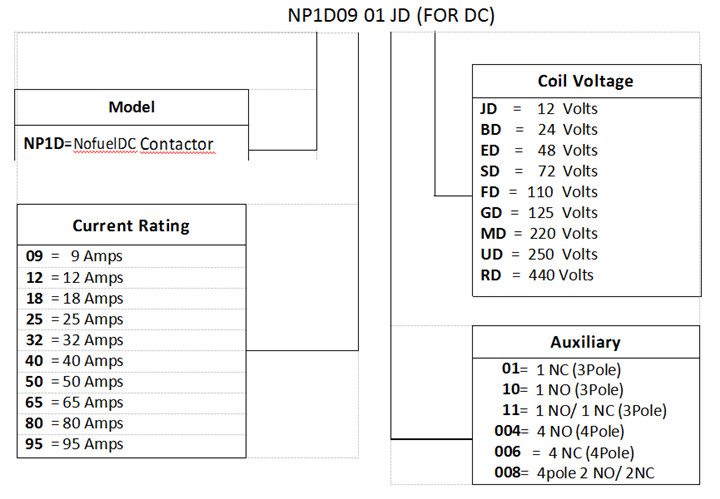

DC Coil Voltage for

3 Pole Contactors 9A~95A & Control Relays

Coils Code

Voltage

TX4-D 12    24 48 72 110 125 220     250    440
Nominal Coil JD    BD ED    SD FD GD MD    UD RD

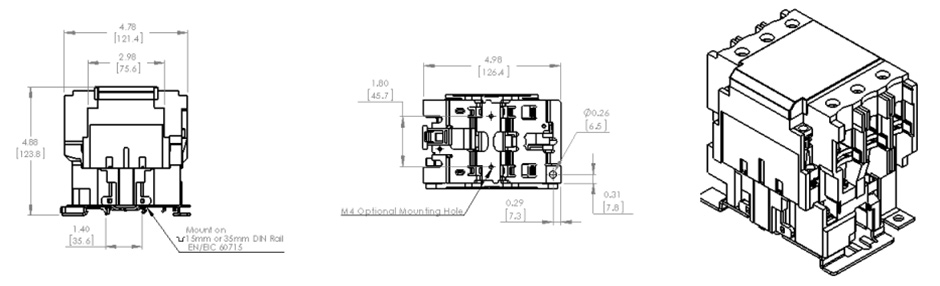

Outline and Mounting Dimensions in mm

NC1D50 – NC1D65

D1(BQV`8VBZ4%O9G8X3N@M8

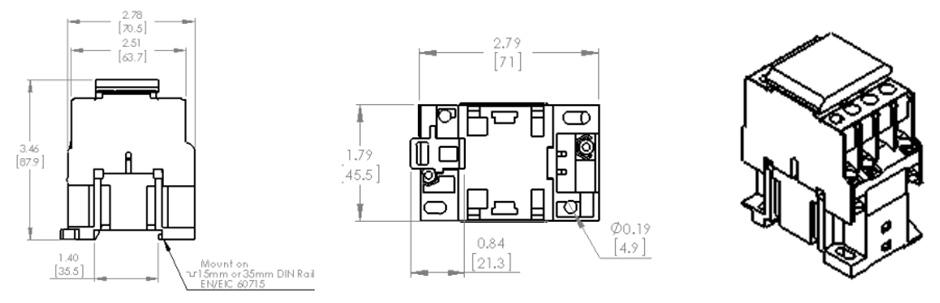

NC1D1801

XI3C8N))[CCNO`FO1`3$227

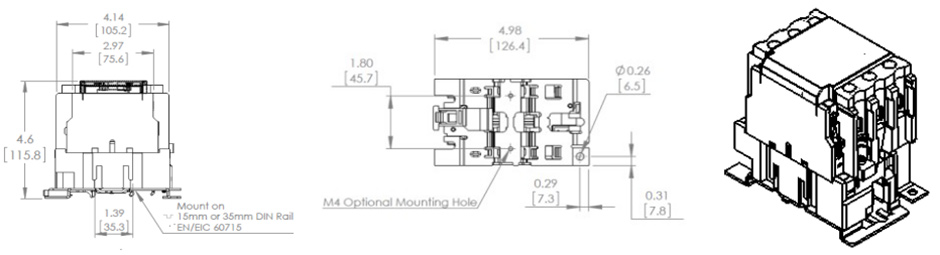

NC1D80 – BLC1D95

Z8@$_459X7`X9RQE4_O0WH0
